Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HNE

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

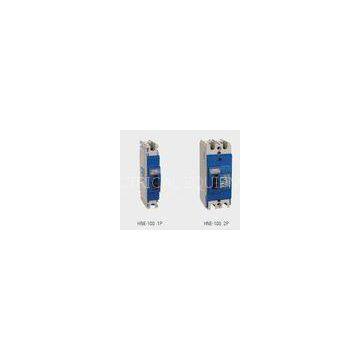

1 Pole , 2 Pole , 3 Pole Molded Case Circuit Breakers / MCCB, for Short Circuit and Overload Protection

Application

HNE moulded case circuit breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz,rated current from 12.5A to 160A. Its rated insulation voltage is AC 690V. It can make and bresk the non-frequent circuit in the normal conditions. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage. It complies with IEC60947-2.

Speci?carions

Type	HNE 60E	HNE 100F	HNE 100H	HNE 250
Number of poles	3	3	3	3
Rated current In(A)	15,20,25,30, 40,50,60	15,20,25,30,40, 50,60,75,80,100	15,20,25,30,40,50, 60,75,80,100	125,160,225, 250
Rated operating voltage Ue(V) AC50/60Hz	500	500	500	500
Rated Insulation voltage Ui(V)	500	500	500	500
Rated(kV) Uimp	6	6	6	6
Breaking capacity(kA ms) IEC60947-2	Icu AC	220/240V	10	25	50	85
380V	7.5	10	30	18
400V	7.5	7.5	20	15
Ics%Icu	220/240V	25%	25%	25%	50%
380V	25%	25%	25%	50%
400V	25%	25%	25%	50%
Breaking capacity(kA) (NEMA-ABI) (HIC)	AC	240V	-	-	25	25
480V	-	-	10	10
Mechanical life	8.500	8.500	8.500	8.500
Electrical life	4.000	4.000	4.000	4.000
Overload current protection(A)	Hot protection	Fixed	Fixed	Fixed	Fixed
Magnetism protection	Fixed	Fixed	Fixed	Fixed
Dimensions(m
