25 mA / 40A Residual Current Circuit Breaker Earth Leakage Circuit Breakers

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VECAS		Place of Origin	China
Model Number	HCL1-63

Product Description

Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE

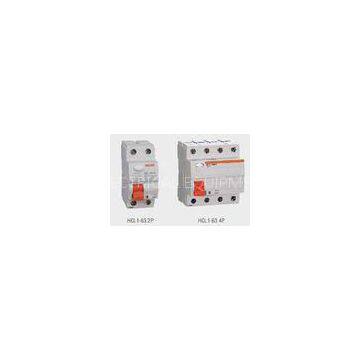

25 amp / 40a / 63A? Residual Current Circuit Breaker , Earth leakage circuit breakers for generator

Technical data

Standard	IEC1008,GB16916,BS EN61008
Rated Voltage (Un)	2pole:230V AC
Rated Current (In)	25,40,63A
Rated residual operating current (l△n)	30,100,300,500mA
Rated residual non-operating current (l△no)	0.5 l△n
Residual current off-tine	≤0.1s
Minimum value of rated making and breaking capacity (lm)	1KA
Rated conditional short-circuit current (lnc)	ln=25,40A Inc=1500A
ln=63A Inc=3000A
Endurance	on load:2000cycles
off load:2000cycles

INSTALLATION

On symmetrical DIN rail
