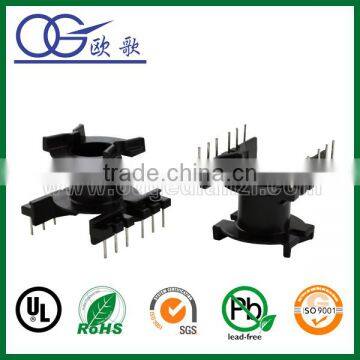

PQ3225 vertical bobbin with pin 6+6,pq magnet core bobbin
- zhongshan
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ouge | |
| Model Number | PQ3225 |
Product Description
Specifications
1.PQ3225 vertical bobbin with pin 6+6,pq magnet core bobbin2.PQ3225 bobbin features:high-frequency
1.PQ3225 bobbin of plastic spool bobbin
2.bobbin|transformer bobbin|coil bobbin
3.bobbin material:phenolic
4.supply the matched ferrite core
vide the sample for free and the delivery time is short
Series | Feature |
EE bobbin | applied in the switching power supply,main power transformer |
EF bobbin | applied in the switching power supply,main power transformer |
EFD bobbin | Auxiliary powr transformer,main power transformer,choke coils |
EPC Bobbin | Auxiliary powr transformer,main power transformer |
PQ Bobbin | applied in the linear filter,choke,pulse transformer,drive transformer |
UU Bobbin | varieties of switching power supply transformer,coke coils et |
EC/EER/ER Bobbin | applied in the linear filter ,current tranformer,smoothing choke coil,drive transformer, switching power transformers and chokes |
RM Bobbin | filters, inductors and transformers for telecommunication other electronic equipment |
POT Bobbin | filters for telecommunication equipment,and various kinds of inductors and transformers |
DR Core | Choke coils, Peaking coils, Linearity coils, Alarm coils, Power choke coils, Fixed choke coils, Filtering coils,etc; |
EI Bobbin | Various kinds of transformers and chokes. |
TOROIDAL core | Pulse and wide-band transformers, various types of filters, inductors and chokes. |
MOQ: | 1PCS |
Certifications: | UL BV SGS CE |
Payment: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Features: | Strong,Phenolic,low cost |
Surface treatment: | polishing |
export: | All over the world |
Appliance: | Home appiance, electronic, |
other: | OEM and ODM order are welcome MODEN,LED,MP3 |
How to purchase from us: | Quotation →PI → Confirm PI → Arrange 30% deposit → Manufacture →Pay balance → Shipping. |
