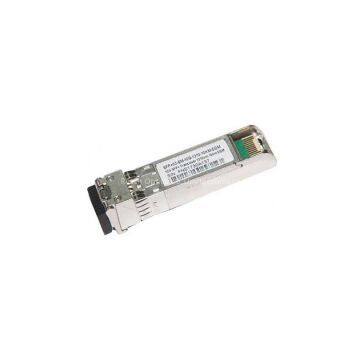

10G BIDI SFP+ 10km Tx 1330nm/Rx 1270nm Optical Transceiver

RSPB-273396-10D & RSPB-332796-10D

Tx: 1270nm/Rx: 1330nm BIDI SFP Transceiver for 10GbE

Tx: 1330nm/Rx: 1270nm BIDI SFP Transceiver for 10GbE

Features

• Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

• Single 3.3V Supply

• Up to 10km on 9/125um SMF

• Two types：

          A:1270nm DFB Laser transmitter,1330nm receiver

          B:1330nm DFB Laser transmitter,1270nm receiver

• Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW

• SFP+ MSA SFF-8431 Compliant

• Digital Diagnostic SFF-8472 Compliant

• RoHS compliant and Lead Free

• Operating case temperature:Standard:  0 ~ 70 °C

Applications

• 10GBASE-LR at 10.3125Gbps

• 10GBASE-LW at 9.953Gbps

• Other Optical Links

Product description

The RSPB-273396-10D & RSPB-332796-10D series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The RSPB-273396-10D module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; RSPB-332796-10D module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
