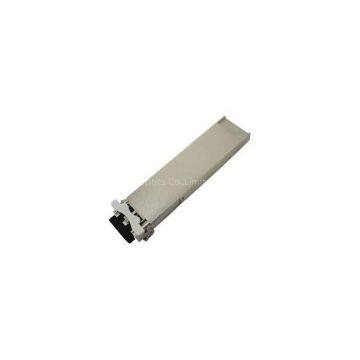

10G XFP 40km 1550nm Optical Transceiver

RXF-5596-40D

10Gbps XFP Optical Transceiver, 40km Reach

Features

• Supports 10GBE Application at the Data-Rate of 9.953Gbps to 10.3125Gbps

• Maximum link length of 40km with SMF

• 1550nm cooled EML laser and PIN photodiode

• XFP MSA package with duplex LC connector

• XFI High Speed Electrical Interface

• +5V, +3.3V,+1.8V power supply

• Low Power Dissipation 3.5W Maximum

• 2-wire interface for management and diagnostic monitor

• Compatible with RoHS

• Compatible with IEEE 802.3ae 10 Gigabit Ethernet

• Compatible with Sonet OC-192/SDH STM-64

Applications

• SONET(OC-192)/SDH(STM64)

• 10GE Ethernet

• 10G Fiber Channel

Product Description

Reach Optics' 40km XFP RXF-5596-40D  transceiver comply with XFP MSA, and can support diverse applications for SDH/Sonet equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications.

The high performance cooled 1550nm cooled EML transmitter and high sensitivity PIN receiver provide superior performance for SONET /SDH and Ethernet applications at up to 40km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
