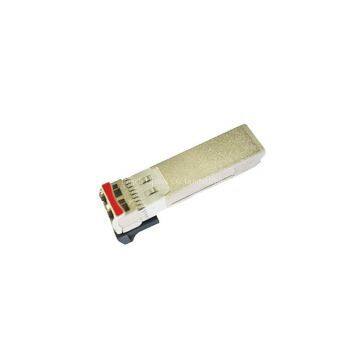

Reachoptics 10G SFP+ 40km 1550nm Fiber Optical Transceiver

RSP-5596-40D

40KM SFP+ ER  1550nm Optical Transceiver

Features

• Compliant with SFF-8431 and IEE802.3ae

• Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates

• Cooled EML transmitter and PIN receiver

• link length up to 40km

• Low Power Dissipation 1.5W Maximum

• -5oC to 70oC Operating Case Temperature

• Single 3.3V power supply

• Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power

• RoHS compliant and lead free

Applications

• 10GBASE-ER/EW (with/without FEC)

• 10G Fiber Channel (with/without FEC)

Description

Reach Optics' SFP+ER Transceiver is designed for 10GBASE-ER/EW, and 8.5G/10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.

Reach Optics' SFP+ER Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
