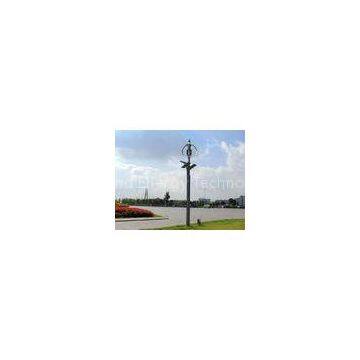

Street lamp Magnetic Windmill Off Grid Wind Turbine for Asia Games

Brand Name	TYPMAR		Place of Origin	China
Model Number	CXF-300W 12V/24V

Delivery Time:5-15 days
Certification:CE,TUV, IEC

Street lamp Magnetic Windmill Off Grid Wind Turbine for Asia Games

This system ?is composed of solar panel, wind turbine, hybrid control system, battery bank,? etc. This system will take advantage of both wind and solar power (the two clean energy source) at the same time, it will be a popular option in the near future.

lar resource is mutually complementary(the hybrid will be specially designed based on the individual consumption and local resource condition), it can make the using of wind and solar power more balanced and stable. Meanwhile, it will not only improve the reliability of electricity supply but also reduce the power production cost. Moreover, the unique shape of this hybrid system will also make its surrounding area more beautiful and attractive.

We manufacture the systems specifically to the region of installations weather patterns and topography, as well as the client’s requirements thus ensuring the correct solution is given every time!

The whole power system configuration:

?NO	Equipment Name	Model No /Specification	Unit	Qty
1	Wind generator	CXF-300W	Pcs	1
2	Wind & solar hybrid controller	300W-24V (Max 540W Solar)	Set	1
3	Pole	6?M	Pcs	1
4	Solar panel	30W? monocrystal? silicion	?Pcs	6
5	Battery	12V/100AH	Pcs	2
6	Main cables	3 X 4mm2? +? 2 X 4mm2	M	??80

Quick Detail:

Name :Off-Grid Wind Turbine Application for Asia Games In Guangzhou 2010 Application :Street lamp with Single arm or double arm . Color: Red & blue, or Sliver

Feature:

Maglev Wind Generator For Off-Grid Lamp System can guarantee the lamp will work for 10 hours each day and ceaselessly work for 5 days in rainy weather. The totally configure will be based on the local weather situation, like the annual average wind speed and solar energy. And all the configuration will meet clients’ demand.

Also if the local situation is not good enough, then we can design that the lamp will work with full power in the first 5 hours, and work with half-power in the other 5 hours to achieve saving energy. The height of the post and the LED streetlamp will be chosen according to the local standards of streetlight. The battery can be placed inside the post to be easy to replace battery every four years or buried under ground to guarantee the span life of battery in ultimate weather. The maglev wind turbine, 1m/s start-up wind speed, 2.5m/s cut-in wind speed, with high power efficiency, no noise, less vibration and balance structure, darrieus and savonieus design, classic appearance, with best capability to survive in over-high wind speed, like hurricane and typhoon, with span life 20 years; Lead Acid Gel battery, span life for 4 years; Mono Solar panel, power efficiency 17%; LED streetlamp, 60-120W, Good performance, IP65, with heat-dissipation patents; post with cold galvanizing and F-C white paint.? ? The whole system is not just a functional natural energy illumination, but also a beautiful scene for streetlight.

Off-Grid Wind Turbine Application for Asia Games In Guangzhou 2010 is a self-sufficient, independent lighting system that eliminates the need to construct buried electrical supply trunks that are typical in conventional street lighting systems. The TYPMAR hybrid street light is capable of providing 10 to 14 hours of illumination per night. The Hybrid street light controller uses Pulse Width Modulation technology to control battery charging with over-load protection. It also controls the light operation by time setting or by light level sensing via the PV cell module.

Benefits Maglev VAWT in comparison to a?propeller wind generators:

independent of the direction of the wind higher efficiency than the propeller blades works even in turbulence visually pleasing appearance and rotation of the blades quiet or almost minimal acoustic noise movement of th
