Home > Products > QSFP Optical Transceiver > 1310nm 40GBASE-LR4 SMF QSFP Optical Transceiver QSFP + Module QSFP-40G-LR4

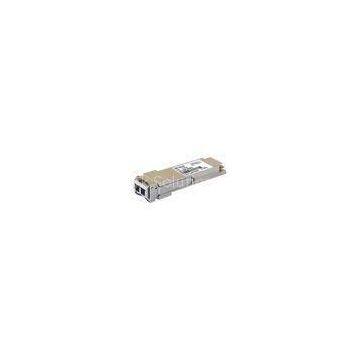

1310nm 40GBASE-LR4 SMF QSFP Optical Transceiver QSFP + Module QSFP-40G-LR4
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
MMF 40GBASE-SR4 QSFP Optical Transceiver QSFP + Module QSFP-40G-SR4
-
1.25G 1310nm SFP Optical Transceivers with Duplex LC connector GLC-LH-SM
-
VSCEL SFP + Optical Transceiver SFP-10G-SR , 10 Gigabit Small Form Factor Pluggable Module
-
MMF 100BASE-FX SGMII SFP 155Mb/s GLC-GE-100FX , Fiber Channel Module
-
100BASE-BX10-D Bidi SFP module for 100-MB ports, 1550 nm TX GLC-FE-100BX-D
-
PIN 10gbase-Lr Xenpak Module Cisco Compatible Transceivers XENPAK-10GB-LR+
Product Details
| Brand Name | PrimusIT,OEM | Place of Origin | China | |
| Model Number | PTR-40GQL-LR4 |
Product Description
Certification:CE/FCC/RoHS/TUV/UL
1310nm 40GBASE-LR4 SMF QSFP Optical Transceiver QSFP +? Module QSFP-40G-LR4
40GBASE-LR4 QSFP+ Module QSFP-40G-LR4 for SMF
Specification:
| P/N | QSFP-40G-LR4 |
| Datarate | 40G/ps |
| Distance | 10KM |
| Wavelenth | 1310nm |
| Media | SMF |
| DDM/DOM | YES |
| Connector | LC |
| Application | 40G Ethernet/ 40G Infiniband |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/UL |
| Brand | PrimusIT, OEM |
Description:
40GBASE-LR4 QSFP+ Module for SMF
The PrimusIT 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.
Features:
1. Hot-pluggable QSFP+ form factor
2. Supports 41.2 Gb/s aggregate bit rates
3. Power dissipation < 3.5W
4. RoHS-6 compliant (lead-free)
5. Commercial temperature range 0°C to 70°C(Standard), -40°C to 85°C (Industrial)
6. Single 3.3V power supply
7. Maximum link length of 10km on Single Mode Fiber (SMF)
8. Uncooled 4x10Gb/s CWDM transmitter
9. XLPPI electrical interface
10. Duplex LC receptacles
11. Built-in digital diagnostic functions
Applications:
40G Ethernet
Infiniband interconnects
40G Telecom connections
Data Centers
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Juniper/H3C/Extreme…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
