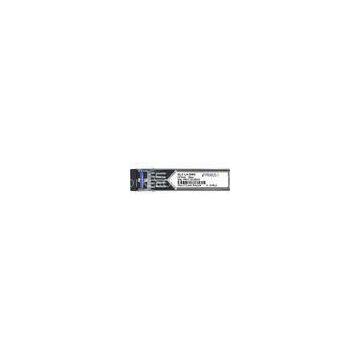

SDH / SONET / ATM 1000BASE-LX / LH SFP Optical Transceivers 20KM GLC-LH-SMD

SDH / SONET / ATM 1000BASE-LX / LH SFP Optical Transceivers 20KM GLC-LH-SMD

1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector

Specification:

Description:

1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector

The PrimusIT Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

Features:

1. Up to 1.25Gb/s bi-directional data links

2. Hot-pluggable SFP footprint

3. Using 9/125 μm SMF 60km transmission distance

4. Optional with digital diagnostic functions

5. 1310nm FP laser transmitter

6. Duplex LC connector

7. RoHS compliant and lead-free

8. Metal enclosure, for lower EMI

9. Single 3.3V power supply

10. Operating temperature: 0°C to 70°C(Standard), -40°C to 85°C (Industrial)

11. Compliant with MSA SFP Specification

12. Digital diagnostic monitor interface

13. Compatible with SFF-8472

14. With DDM

Applications:

Gigabit Ethernet/Fast Ethenet

Fiber Channel

SDH/SONET/ATM

Switch to Switch interface

Router/Server interface

Other optical transmission systems

Competitive advantage:

1. Excellent quality and 3 years warranty

2. Competitive pricing

3. Full compatible (CISCO/HP/Juniper/H3C/Extreme…)

4. OEM/ODM Customized label

5. Keep stock,Fast delivery
