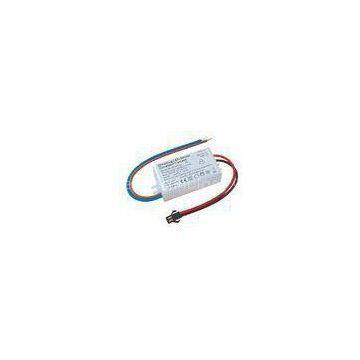

Isolated Constant Current 500Ma Triac Dimmable Led Driver 9V DC 220V AC IP64

Isolated Constant Current 500Ma Triac Dimmable Led Driver 9V DC 220V AC IP64

Short Features :

> input voltage range : 90~140VAC / 170~250Vac

> output : 9V ~ 15V DC 500mA

> PF : >0.92

> Effiency : 90% minimum

> Ripple and Noise : 100mV maximum

> IP rate : IP64 non-waterproof

> Output type : constant current

> Net Weight : 150g

> Dimensiont : 52(H)*30(W)*20(H)mm

> Certificate : UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

> Application : Led Panel , Led Street , Led Down Light etc ......
??

Specifications

MODEL LIST :

Applications:?

For led light, led strip, led down light,led tube etc….

INSTRUCTION:

- For indoor application, can meet IP65 waterproof rate.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

-The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduce
