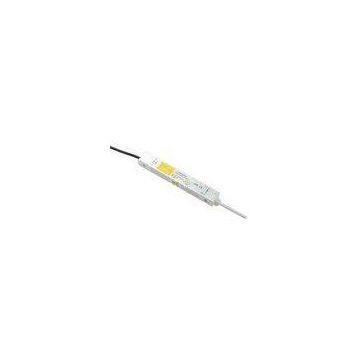

3W IP67 300Ma Constant Current Waterproof Led Driver CE ROHS Approved

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	WTF-E12300A

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

3W IP67 300Ma Constant Current Waterproof Led Driver CE ROHS Approved

Short Features ?: ?

> input voltage : 100~240VAC

> output : 6 - 12 V 300Ma 3W

> Output type : constant current type

> Ripple and Noise : 200mV maximum

> material : aluminum case

> Gross Weight : 100g

> Dimension : 60(H) * 30(W) * 20(H)mm

> Effiency : 85% minimum

> PF : ?> 0.90

> Certificate : UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates .

> Safety protection : over load , over voltage , short ciruict?, open load protection .

Specifications ?

Input Rated Voltage?:	100Vac~240Vac
Input Frequency Range :	47Hz~63Hz
Input Inrush Current?:	1.8A max
Efficiency??:	85%(MIN)at Rated Voltage
Output :	6 - 12 V 300Ma 3W
Output power?:	3W
Ripple and Noise?:	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time :	<3S? (AC:110V and full load)
Safety protection?:	over voltage?and current protection.
Leakage Current :	<5mA
Output typer :	Constant voltage
Operating Temperature :	0°C----+60°C
Storage Temperature :	-20°C----+85°C
Certificate :	CE GS TUV?UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application :	For led light , led strip , led down light etc….

MODEL LIST ?:

CONSTANT?CURRENT?IP?67?LED?DRIVER
Model	Input?Voltage	Output?Power	Output?Voltage	Output?Current	Power?Factor	Dimension
WTF-E04300A	100-240V?AC	1*3W	2-4V	300mA	0.95	603020mm
WTF-E12300A	100-240V?AC	3*1W	6-12V	300mA	0.95	603020mm
WTF-E04700A	100-240V?AC	1*3W	2-4V	700mA	0.95	603020mm
WTF-E30300A	100-240V?AC	5-8*1W	15-30V	300mA	0.95	603020mm
WTF-E36300A	100-240V?AC	8-10*1W	21-36V	300mA	0.95	653020mm
WTF-E40330A	100-240V?AC	10-12*1W	24-40V	330mA	0.95	653020mm
WTF-E21600A	100-240V?AC	13W	12-21V	600mA	0.95	753020mm
WTF-E65300A	100-240V?AC	12-18*1W	36-65V	300mA	0.95	1203020mm
WTF-E90300A	100-240V?AC	18-25*1W	54-90V	300mA
