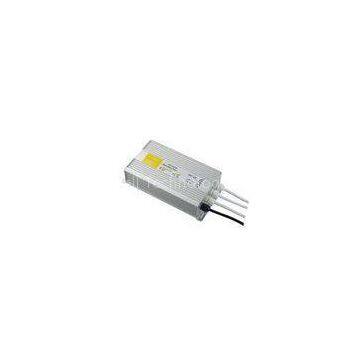

Outdoor 200W Waterproof Led Driver 12V 16.6A / 24V 8.3A UL SAA ROHS

FOB Price

Negotiable / Carton

1 Carton(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	WTF-D12200A

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

Outdoor 200W Waterproof Led Driver 12V 16.6A / 24V 8.3A UL SAA ROHS

Short Features ?: ?

> Output type : constant voltage type

> input voltage range : 90~240VAC

> output : 12V 16.6A max / 24V 8.3A max 200W

> Certificate : CE ROHS FCC UL GS CB SAA C-tick

> application : street lights , swimming pool lights , outdoor application

> Safety protection : over load , over voltage , short ciruict?, open load protection .

> Ripple and Noise : 200mV maximum

> PF : ?> 0.95

> Effiency :?>85%?

> material : aluminum case / metal case

> Gross Weight : 1750g

> Mechanical Dimension : 250(H)*72(W)*50(H)mm

Specifications ?

Input Rated Voltage?:	100Vac~240Vac
Input Frequency Range :	47Hz~63Hz
Input Inrush Current?:	1.8A max
Efficiency??:	85%(MIN)at Rated Voltage
Output :	12V 16.6A max / 24V 8.3A max
Output power?:	200W
Ripple and Noise?:	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time :	<3S? (AC:110V and full load)
Safety protection?:	over voltage?and current protection.
Leakage Current :	<5mA
Output typer :	Constant voltage
Operating Temperature :	0°C----+60°C
Storage Temperature :	-20°C----+85°C
Certificate :	CE GS TUV?UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application :	For led light , led strip , led down light etc….

MODEL LIST ?:

IP 67 CONSTANT VOLTAGE LED DRIVER
Model	Input Voltage	Output Power	Output Voltage	Output Current	Power Factor	Dimension
WTF-D12010A	100-240V	10W	12V	0.83A	0.95	585823mm
WTF-D24010A	24V	0.42A
WTF-D12010A	100-240V	10W	12V	0.83A	0.95	1003221mm
WTF-D24010A	24V	0.42A
WTF-D12015A	100-240V	15W	12V	1.25A	0.95	1203221mm
