Galvanized Steel Structure Portable Commercial Buildings - Flatpack, Modular

Galvanized Steel Structure Portable Commercial Buildings - Flatpack, Modular

? Description:

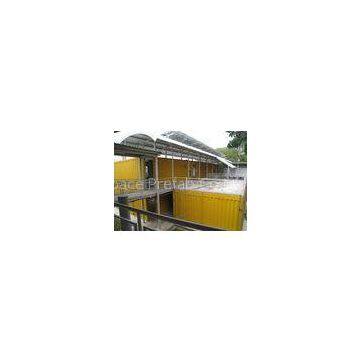

This is combined container building.?26 standard units combined and stacked.

Size of each unit is?2.4m*6m. External corridor and staircase link the units together.

Cabin is consisted of ready-made floor frame, roof frame, wall panels, internal partitions and accessories.

2 workers can assemble on basic unit within 4 hours (about 14.4 square meters). For this building, it needs 8 man.days.

It’s convenient for folding. 4 units packed to one 20 feet container during delivery, so it is suitable for international transportation.???

Specifications of Each Unit:

I.?Dimension(mm)＆Weight(kg)

???L=6055mm, W=2435mm, H=2790mm

II. Steel Frame: Galvanized Steel Frame with Marine Paint Finishes?

??? Load bearing - floor load: max. load capacity 2.0 kN/m2 (200 kg/m2)

??? Capacity?- wind load: 25 m/s (90 km/h)

III.?Wall : 50 - 100mm thick Sandwiched Panel?

IV.?Insulation : 50-100mm thick Rockwool or Neopor EPS

V. Door: 900 x 2100 mm Alum. Frame Metal Door or PVC Door

VI. Windows: 800 x 1000 mm Alum. Frame or PVC Window

Competitive Advantage:

Knock-down Panel wall saves transport and storage space

Top and bottom are pre-assembled in the factory in order to minimize the on-site work

With firm structure, the earthquakes and typhoons can be resisted

With the insulation material of rock wool and Noepor polystyrene, good fireproof performance is available.

Modular design, be linked on unlimited extension

Easy to be repaired and maintained for high standardization.

Life time 30 years.
