Product Details

Brand Name	Housespace		Place of Origin	China
Model Number	Custom-made

Product Description

Delivery Time:To be Discussed
Certification:CCS,SGS,ISO9001,ISO9004,

Customized Modular Portable Commercial Buildings - Foldable, Galvanized Steel Structure

Description:

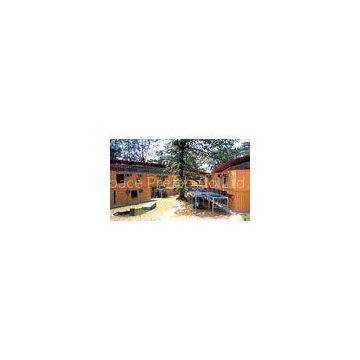

Project Name: Phase Zero Incubator Park Product Usage: The lobby is mainly used for company’s exhibition, conference or party in the park. The space of module had been divided as different sizes according to the tenant’s requirement in order to accommodate different IT enterprises. Specs: 5700 square meters Material Quality: Prefab module Installation and Transportation: Factory assembling, Trailer transport, Install on site.

It includes a 300-square-meter’s lobby and 300 pcs of 6mx3m modular spaces. These modular spaces are joined by corridor and covered with red special roof with unique design. The partition wall between modules can be set up or moved as required in order to meet the requirements of different growth stage corps in the park so that the project is very popular for the tenants.

Specifications of Each Unit:

Item	Name	Specs and Data
Basic Specs	Length	Length of modular:6055mm;Combined building Length:N*6055 (N＝2,3,4……)
Width	Width of modular:3000mm;Combined building width:N*3000(N＝2,3,4……)
Height	2790mm,Max 3 floors
Standard Items	Base Frame	Main beam 4mm special profile,Q235
Roof Frame	Main beam 3mm special profile, Q235
Column	Column 3mm special profile, Q235
Rain Water System	Concealed gutter, discharge from rainwater down pipe (concealed in column)
Wall Panel	50, 75, 100mm Sandwich Panel
Roof Panel	0.45mm Colorbond metal sheet
Ceiling	10mm Laminated timber board
Floor	18mm Plywood with 2mm thick floor vinyl sheet
Door	Alum frame insulated metal door, size: 800mm*2100mm
Window	PVC swing window,size: 800mm*1100mm
Lights	2*40w double tube fluorescent light, 2 sets
Switch	1 set
Socket	16A socket for A/C, 1 no; 10A Socket, 3 nos.
DB	40A
Optional Items	Ventilation Fan	40w Fan
Floor Finishes	Ceramic tile, PVC floor board, Laminated timber parquet
Partition	50mm thick sandwiched panel
Structure Data	Roof live load	50kg/m2
Floor live load	200kg/m2
Wind load	0.45KN/m2
Earthquake Intensity	8 degree

Competitive Advantage:

Knock-down Panel wall saves transport and storage space

Top and bottom are pre-assembled in the factory in order to minimize the on-site work

With firm structure, the earthquakes and typhoons can be resisted

With the insulation material of rock wool and Noepor polystyrene, good fireproof
