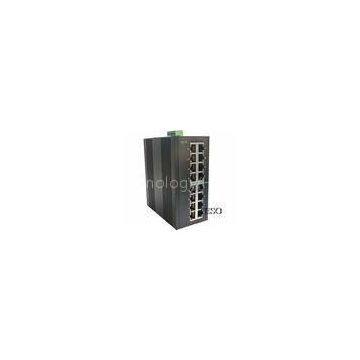

24 VDC Optical Ethernet Switch DIN Rail High Speed With FCC Part 15

Brand Name	TESO		Place of Origin	China
Model Number	TESO-IES003

Delivery Time:5-10 days
Certification:CE
24 VDC Optical Ethernet Switch DIN Rail High Speed With FCC Part 15

Quick Detail:

* 10/100M DIN-Rail Industrial fiber Switch

* Managed fiber switch

* single mode or multi mode is optional ?

* 16 X 10/100Mbps rj45/Tx / utp ports

*? dual power supply

* Support Ring Network designed

10/100M DIN-Rail Managed Industrial Ethernet Switches

TES0-IES003 is a managed Layer 2+ industrial Optical Ethernet switch with 16 * 10/100Mbps electrical ports. it is designed to meet the various industrial application needs, and provide an industrial Ethernet network communication solution with a high performance-price ratio. TES0-IES003’ s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. TES0-IES003 also features powerful Web-based, CLI management capabilities, wide input range dual power supply and its support for DIN rail and panel mounting for installation in the industrial environment.

Ring Protection designed specifically for industrial applications, to provide a fast Ethernet ring protection and recovery within 15ms.From the management console, uses can choose any port (normal Ethernet port or trunk port) to form an Ethernet ring for faster recovery and wider bandwidth.

Key Features

* Ring Protection, Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for Ethernet ring protection and quick recovery

* 8K address table for auto-learned unicast addresses

* 4K VLAN, supports 802.1Q, port based, protocol based VLAN, as well as Generic Attribute Registration Protocol (GARP) and GARP VLAN Registration Protocol (GVRP) for flexible network planning and management

* Flexible load distribution control and fail-over function

* Manual, static and dynamic port Static and dynamic port aggregation for bandwidth management

* Port rate limit, broadcast storm control, port mirroring, rich Quality of Service (QoS) features for data traffic control and management

* Blackhole MAC address filtering, static and dynamic MAC address management for network security

*? Access Control Lists(ACL)

* Secure Shell (SSH) v2.0

* IGMP snooping

* SNTP, SMTP

* SNMP V1, V2c, V3

* Supports RMON statistics, history, alarm and event

* Web-based network management interface

* Supports port and VLAN management

* On-line firmware upgrade

* Two privilege level accounts

* Syslog

* Dual power input for high reliability

* DIN rail or panel mounting for easy installation

Performance

802.3 10Base-T Ethernet

802.3u 100Base-TX and 100Base-FX fast Ethernet

802.3x Flow Control and Back Pressure

802.1p Class of Service

802.1Q VLAN Tag

802.3ad LACP

802.1d STP

802.1w RSTP

????? ? ? ? ? 802.1x

*Non-blocking store-and-forward shared-memory switch architecture

*MAC address:8K

*Network management: Web-based, CLI

*Fast Ethernet Ring Protection: recovery time within 15ms

*Firmware upgrade: Web, online?

Port configuration

*RJ45 Port: Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.

*100Base-FX Optical Port:100BaseFX ports (SC/ST, optional)

*Single-mode:20, 40, 60, 80, 100,120Km,optional

*Multi-mode: 2, 5Km,optional

*Wavelength: 850nm, 1310 nm, 1550nm

*DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45

*Alarm output interface: One relay alarm output. Support power, port link and ring network alarm

*Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication

Power requirements

*Input Voltage: 24 VDC (18 to 36VDC), redundant dual inputs

*Input Current:

IDS 508 : <0.24A@24VDC IDS 508-4F: <0.40A@24VDC Overload Current Protection: Present Reverse Polarity Protection: Present Connector: 6-contact terminal blocks

Environmental limits

* Operating Temperature:

0℃ ~+ 60℃(Normal Temperature) -40℃ ~+ 80℃( Wide Temperature)

* Storage Temperature:-40℃ ～+ 85℃

* Humidity: 5%～95%

Mechanical Dimension

*Dimensions: 61 x 120 x 140 mm

*House Protection: IP40 protection, Aluminium Alloy

*Installation: DIN-Rail or wall mounting

*Weight: 780g

Approvals

*EMI: FCC Part 15 Subpa
