1.2 Inch Double Chain C & U Roll Forming Machine For Roof Panel
- T/T L/C D/P D/A
- 7 days
You May Like
-
Floor Deck Roll Forming Machine,Metal Forming Machinery
-
Simple Steel Coil Slitting Line With 0 - 30m/min Speed
-
Edge Trim Roll Forming Machine / Metal Forming Machinery With 6500 x 800 x1200mm Size
-
Edge Trim Roll Forming Machine,Metal Forming Machinery
-
Automatic 1250mm Metal Deck Roll Forming Machine 3.5KW , 16Mpa With PLC System
-
Membrane Panel SAW welding Production Line Electrical Switches ISO
Product Details
| Brand Name | Friendship | Place of Origin | China | |
Product Description
Certification:ISO

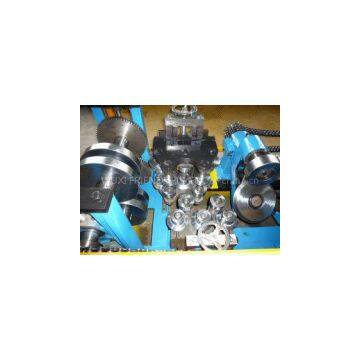

1.2 Inch Double Chain C & U Roll Forming Machine For Roof Panel
1) Production Characteristic and use:
This kind of machine can produce C, U& Z ?profiles. Just through changing the spacer to adjust the bottom width and adjus the vertical rollers to realize differenct specification of profiles.
2) Main Technical Specification:
1. Coil requested: 100-480mm, strip steel, galvanized steel and stainless steel, 0.8-3mm
2: Rolling speed: 12m—15m/min?
3: Roller station: abt 17 steps
4. Material of roller: Gcr15, polished and coated with chrome HRC58-62°
5.material of main shaft:45﹟forge steel?? diameter roller: Ф85mm
6. Total main power: 18.5kw
7. Transmission: by 1.2 inch double chain
8. size of machine: about 12m×1.3m×1.6m
9. weight: about 14000Kg
Processing flow:
Passive decoiler/Hydraulic decoiler----Guidingand flatting----Hydraulic punching----Rollforming---- straightening---Hydraulic cutting---- Run out table
