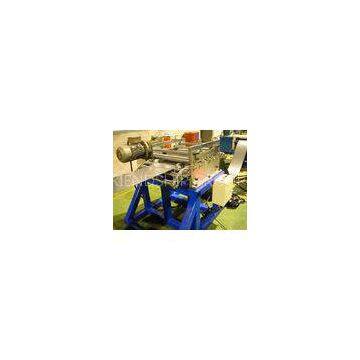

60mm - 140mm Coil Width Roll Forming Machine With Guiding Column Machine Structure

60mm - 140mm Coil Width Roll Forming Machine With Guiding Column Machine Structure

Introduction of machine

The base frame of ?Shelf roll forming machine is adopted to big gantry milling , make sure that have a effective and accuracy product . ? The forming station is covered by the chrome-plated (other supplier’s paint) to resist the corrosion ,the firm thickness and the chrome-plated can guarantee the machine has a longer life!? ? When you adjustment the size , you just need to see the scale ,then will know it standard or not . It can save time and be convenient when adjust.? ? The Shelf roll forming machine adopt to the worm gear box (not?chain) to guarantee that a more steady and more precision working .the keep the gear box has the oil ,then have a at least 20 years .it is more safety to work ,too. ? The surface of rollers are covered by the 0.15 mm chrome plated? .in order to prevent rust between the roller and axel .?

Technical parameter

?

Item	Description
Material of coil	galvanized steel
Width of coil	60/80/100/120/140(According customer requirement)
Forming thickness	1.2/1.5mm
Forming Stations	15 Stations + lock beam forming station: 4 station
Roller material	Gcr 12 bearing steel
Shaft diameter	?55 mm
Drive type	Worm Gear box
hydraulic Cutting mold numbers	5 sets
Machine forming speed	10-15M/min
Machine structure	Guiding Column
Motor	380 voltage ,3 phase
Main?Motor power	11 kw
Hydraulic station	5.5kw
Size	27m*1.5m*1.2m
Weight	8 tons

Machine working flow

De colier---> leveling machine? ---> Roll Forming Machine --->servo track hydraulic cutting

--->Product Stand Tables?

Servo track cutting machine . Yaskawa servo motor .more precision to cutting ! It can keep the same speed with the roll forming machine . The screw is 8.8 grade ,China’s standard . Hydraulic station is from Taiwan !Air cooling system : RISEN . Discharge the heat in time only we have ! The pump and solenoid value are used for taiwan yuken , The motor is Taiwan professional Hegu ? The bearings is HRB brand .(China top brand)? In the aviation plug ,including many electrical wires? that between the box and the machine.using this ,guarantee the safety and make the machine tidy !

Introduction?of?company

? ? We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has? been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients\' competitiveness and productivity.

?? We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
