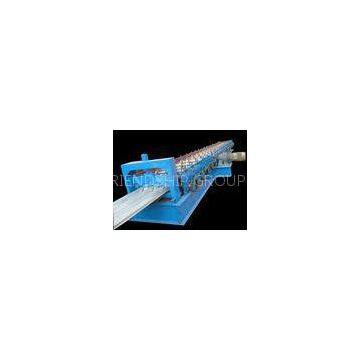

Galvanized Steel 0.8MM - 1.2MM Metal Deck Roll Forming Machine With 28 Stations

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Friendship		Place of Origin	China
Model Number	SZJ-15

Delivery Time:60days
Certification:ISO
Galvanized Steel 0.8MM - 1.2MM Metal Deck Roll Forming Machine With 28 Stations

?
Technical proposal:
?

Name	Item	Specification
Coil?requested	Material	Color?steel,?galvanized?steel
thickness	0.4-0.8mm
Tensile?strength	235Mpa
Coil?width	Up:1297mm?Down:1300mm
Decoiler(1?unit)	Type?and?weight?capacity?	?Manual?decoiler,?5T
Inner?diameter	498-508mm
Outer?diameter	Max:1800mm
Rollforming?machine (1?unit)	Rolling?speed	15m/min
Motor	7.5KW,?3phase,?60Hz,?380V
Rolling?step	16
Driving?system	Chain?transmission
Structure?of?machine?body	Entire?wall?steel?structure
Material?of?roller	45#?steel,?chromed?thickness0.05mm
Diameter?of?shaft	75mm
Dimession	Abt.9m1.5m1.1m
Weight	Abt.9T
Electric?control?cabinet(1?unit)	Main?component	PLC,?frequency?convertor,? touching?screen,?encoder
Cutting?and?length?measurement	Automatic
Brand	Panasonic?from?Japan,?can?be? chosen?by?client
Hydraulic?station???(1?unit)	Power?and?strength	3.5KW,?16Mpa
Cutting?machine(1?unit)	Material?of?blade	GCr12?mov?steel,?heatment?and? hardness?up?to?HRC58-62
Cutting?type	Hydraulic?cutting
Run?out?table(1?unit?with?4?pieces)	Size	1.2m0.7m1m*4

Working flow:
Manual decoiler----Guiding&feeding----Rollforming---Hydraulic cutting----Run out table
