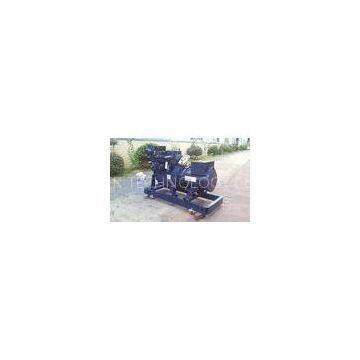

5kw - 500kw Marine Diesel Generator Set, 25KVA - 625KVA CCFJ20

1.Frequency 50HZ, 1500RPM
2.Rating voltage 380V/220V, 400V/230V
3.Frequency 60HZ, 1800RPM
4.Model of Connection: 3 phase 4 lines


3 Phase 4 Lines, 5kw - 500kw Marine Type Diesel Generator Set CCFJ20
?

Descriptions:

The gensets possess closed cooling water system and protection features for high water oil temperature, low oil pressure and over speed. The rotor of generator is designed of non-salient pole type and provided dampling windings and brushless THYRIPART excitation system.


Features:

Engine collection: fresh-sea water cooling system, heat exchange, fresh sea water pump, expansion tank;
Both engine and alternator are mounted on same steel structural base frame with isolators installed;

24V DC electric system with battery, control panel with voltage, ampere, frequency, oil pressure, water temperature, hour meter, emergency stop button; air cleaner; captive 4-point mounting system with vibration isolator mounts. Structural steel skid with convenient 4-point lifting arrangement. Engine protecting system: high speed, high water temperature, low oil pressure.


These types of generator sets are suitable for sea areas as draining water ship, tugboat, fishnet ship, freighter and digging-ship etc. as electric power.

　　Power range of marine generator set is from 5KW to 500KW in our company, graceful appearance, compact constructer, fine performance, high reliability, adopts brand-name engine and TFS-H series marine third-harmonic excitation generator or TFKX-H series compound excitation generator or TFW-H series marine brushless generator per customer’s requirements.

　　In technical data, all data are typical in engine and generator.It also is selected for adopting other engine and generator, may see the data for common generating-set.


Specifications
?
