Automatic Intelligent Generator Controller For Generator Parts HGM6320T
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Generator Controller With ASM Automatic Start Module For Generator Parts HGM6320
-
Integrating Digital, Intelligent And Network Generator Controller For Generator Hgm6120
-
180 / 180HC Automatic Engine Control Module Generator Parts HGM180HC
-
Auto Mains (Utility) Failure Control Module For Generator Parts DSE7120
-
Manual / Remote Start Low Oil Pressure Module Generator Spare Parts DSE702
-
Automatic Mains (Utility) Failure Control Module Generator Parts DSE5120
Product Details
Place of Origin | China |
Product Description
Certification:CE, ISO, SONCAP
1.automatic start/stop
2.LCD display
3.generator control unit
4.automatic generation control

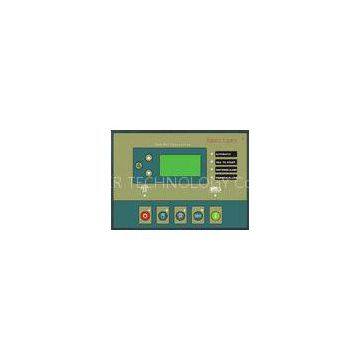

Automatic Intelligent Generator Controller For Generator Parts HGM6320T
SUMMARY
HGM6320T Series generator controller integrating digital, intelligent and network techniques
is used for automatic control system of diesel generator. It can carry out functions including
automatic start/stop, data measure and alarming. The controller uses LCD display,
optional Chinese and English display interface with operation easy and reliable.
HGM6320T Series generator controller uses micro-processing technique which can carry out precision measure, constant value adjustment,
timing and threshold setting and etc. of multi-parameters. It can be widely used in all types of generator automatic control system for
compact structure, advanced circuits,simple connections and high reliability.
PERFORMANCE AND CHARACTERISTICS
◆Using microprocessor as a core, graphics LCD with big screen and backlight,
display between Chinese and English, key touch for operation.
◆Precision measure and display of
mains voltage
mains frequency (Hz)
mains active power (kW)
mains apparent power (kVA)
mains power factor
generator voltage
generator current
generator frequency (Hz)
generator active power (kW)
generator apparent power (kVA)
generator power factor
generator hours count
generator cumulate electric energy (kWh)
generator temperature
generator pressure
generator fuel level
start battery voltage
◆Configurable single phase 2 wires or three phase 3 wires or three phase 4 wires AC system input;
◆Control protection: Automatic start/stop, load transfer and alarming of generator;
◆Parameters setting: Allow user to modify setting and store them inside internal FLASH memory,
the parameters can not be lost even with power down.
◆Three channel analog inputs, may joint with Resistive-type temperature/pressure/fuel level sensors,
Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS),
also may select“userdefined” sensor via entering 16 point curves;
◆Functions including RTC(real time clock) and hours count;
◆Display of generator cumulated electric energy;
◆Security password-protected programming levels.
◆Several crank success conditions are optional;
◆Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed;
◆200 historical records can be stored circularly and inquiring of the records can be made on site;
◆Power supply range is wide, accommodating to different starting battery voltage environments;
◆All parameters use digital modulation, abandoning analog modulation using conventional
electronic potentiometer, reliability and stability are increased;
◆Built-in watch dog can never be dead halt,ensuring smooth program execution;
◆Modular configuration design, inserted type connection terminals,flush type installation,
compact structure, easy installation.
