Juice Automatic PET Bottle Filling Machine PLC Pure Water Filling Machine

Brand Name	Jiayuan		Place of Origin	China
Model Number	CGF40-40-40-12

Delivery Time:30 days
Certification:CE,SGS

Juice Automatic Bottle Filling Machine PLC Pure Water Filling Machine

Quick Detail:

Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock Fully automatic, no bottle no filling, no cap machine will stop. Capacity: 18000-20000 bottles per hour CE, ISO certificate Designed power supply: AC/380V/50HZ/3PHASE Customizable

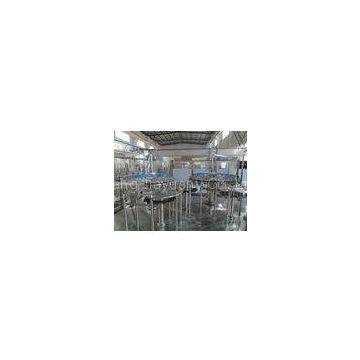

Automatic SUS304/316 20000BPH CGF40-40-40-12 4-in-1 water bottling plant

Description:

The water bottling plant capacity can be 1000-20000bph. We strictly manufacture and manage according to IOS9001:2000 System. And we sincerely welcome customers all over the world visit our company, or browse, visit our website. Any requirement, please contact us via E-mail, we will provide beat service for customers. This 4-in-1 water bottling plant: used for pure water, mineral water, drinking water filling into PET bottles, or glass bottles. The water bottling plant is?Wash-filling-capping?4-in-1 unit. The water bottling plant is suitable for 500-2000ml PET bottle filling, this machine can realize one machine different size, just change the different star wheels.

A. water bottling plant—double washing part?

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing 304 stainless steel washing pumps First rinsing position is sterilizing water rinser; second rinsing position is purified water rinser.

B. water bottling plant--Filling part?

Filling temperature is adjustable. Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling. All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean No bottle no filling

C. water bottling plant--Capping part?

l??Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping l??All 304stainless steel construction l??No bottle no capping, l??Automatic stop when lack of caps

Application

This machine can be used for filling non-carbonated liquid beverage with normal or middle temperature into PET bottles and capping it automatically.

Pure water Mineral water Juice filling with normal temperature or middle temperature.

Specifications:

Model:	CGF40-40-40-12
Capacity:500ml(b/h)	18000-20000
Suitable Bottle Height(mm)	150-320
Suitable Bottle Body Diameter(mm)	φ50-φ100
Suitable Cap Shape	Plastic Screw Cap
Power: (W)	9.63
Filling Temperature:	Room Temperature
Water Consumption for Washing Bottle(kg/hr)	4000
Gas Consumption(m3/min)	0.6
Size L×W×H (mm)	3500×2200×2250
Total Weight:(kg)	8000
Power Supply	380V/50HZ

Competitive Advantage:

The?whole?process?is?automatic, no bottle no filling, no cap, machine will stop. The?three?functions?of?bottle?washing,?filing?and?capping?are?composed?in?one?body?of?the?machine. Low?power?consumption,?better?material?SUS?304,?SUS?316. So?this?machine?has?three?steps,?first?is?washing,?second?is?filling,?third?is?sealing?the?bottle.? Auto?complete?line,?need?less?worker. Small?size, simple?structure, low?investment
