2 Tons Water Purifying Machine , RO Water Treatment System

Brand Name	Jiayuan		Place of Origin	China
Model Number	JYUF-2

Delivery Time:20 working days after down payment.
Certification:CE,SGS

2 Tons Water Purifying Machine , RO Water Treatment System

Quick Detail:

Capacity range: 2 tons per hour. Main material: SUS304 Ultra filter membrane brand: Hydranautics Main pump brand: Nanfang pump Main electric component brand: Mitsubishi Certificate: CE, SGS Easy operate

2 Tons per hour SUS304 Mineral water treatment system

Description:

Features

Low power consumption can operate in normal temperature and low pressure, small size, simple structure, low investment. The processing in only liquid transportation by pressure, so the flow chart is simple and easy to?operate and manage. Treatment capacity can be 1-50 tons per hour.?

2. Summarization:

Ultra filtration is a purification, separation or concentration of semi permeable membrane in separation techniques for solution. After more than 20 years rapid development, it has become one of the widest techniques in membrane separation field. It widely uses in food and beverage, chemical electron, biological construction for environmental protection, etc.

?3. Ultra Filtration Process:

?1). Using the Pretreatment, Micro filter, UF, Ozone Generator for sterilization to produce the qualified natural mineral water.

2). The pretreatment device installs with multimedia filter, which is filled with refining Quartz Sand, to remove the large particles, silt particles, suspended solids, and other impurities.?

3). The activated carbon filter can effectively remove the organic substance, odor, color, colloidal impurities.

4). 5μ precision filter can block the particle more than 5 micron-meter passing into next process.
5). UV Sterilizer can kill the bacteria, virus, effectively.

6). 1μ security filter, mainly used to get rid of the smaller particles and remains of bacteria, virus.

7). Ultra filtration is a separation process, with pore sizes in the range of 0.1 to 0.001 micron.? Typically, ultra filtration will remove high molecular weight substances, colloidal materials, and organic and inorganic polymeric molecules.? Low molecular weight organics and ions such as sodium, calcium, magnesium chloride, and sulfate can not be removed, so, it can make the finished water with no bacteria, clear and good tasty.

8). At terminal, there is an Ozone generator or Ultraviolet sterilizer for sterilization, keep water clean avoiding secondary pollution, ensuring high-quality finished water sterile and longer shelf-life.

Application

electronic industry food and beverage industry medicine industry chemical industry petroleum industry pre-treatment of RO system and pure water treatment water reclamation biotechnology industry surface water treatment

Specifications:

Complete mineral water treatment plant is consist of the following equipments

Description	Qty	Remarks

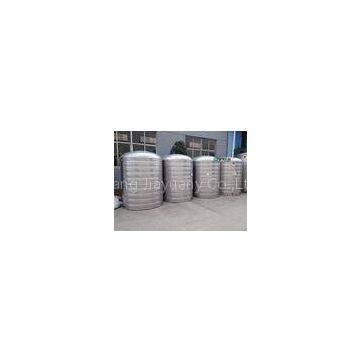

Raw water tank	1 pc	Normally prepare by user to save the shipping cost/Supply by our company
Booster pump	1 unit	Nanfang Pump
Quartz sand filter	1 unit	Includes up-down distributor, valves
Active carbon filter	1 unit	Includes up-down distributor, valves
Water softener	1 unit	Includes up-down distributor, valves
Security filter	1 unit	5um filter cartridge
PH adjustment system	1 unit
Ultra-filtration system	1 unit
Backwash?pump	1 unit	Nanfang pump
Ozone generator	1 unit	Matched
