Home > Products > SD Mobile DVR > Embedded LINUX School Bus GPS SD Mobile DVR With H.264 Sole Distributor

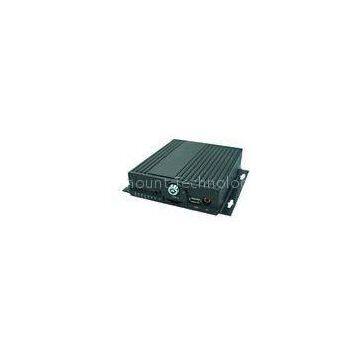

Embedded LINUX School Bus GPS SD Mobile DVR With H.264 Sole Distributor
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 Channel SD Mobile DVR With H.264 High Profile Compression
-
4 x Zoom WDR TFT SD Mini Full HD 1080P Car DVR Camera Recorder DC 5V / 1000MA
-
LCD 2 inch TFT High Resolution 1080P Car Camera DVR With Various Video Formats
-
8GB MIC LCD GPS 1080P Car DVR Rear View Mirror 5 inch 800 X 480 pixel
-
H.264 WiFi GPS 3G Police Video Recorder , External Camera Digital Video Recorder
-
Wide Voltage 4 Channel 960H GPS Mobile DVR With HD Resolution Display
Product Details
| Brand Name | Fortunemount | Place of Origin | China | |
| Model Number | MCS1NNN |
Product Description
Certification:CE,ROHS, FCC
Embedded LINUX School Bus GPS SD Mobile DVR With H.264 Sole Distributor
Feature:
Special function:?GPSdata,wide voltage,mobile DVR player,SDK etc.Compression algorithm ideal:?H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technologyPlayback quality:?support 4ch D1 real-time recording,2ch Dl real-time playback.Main Stream:?Main stream for local storage, ensure image qualityDisplay:?support TV outputOperation interface:?similar to Windows operating styleDifferentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.Others:?Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes；With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
4 channel Video Input support 1*SD Card Storage;( SD maximum 64G)not support GPS;?
?
Specification:
?
| Model | MCS1NNN | |
| system | Main processor | Industrial Embedded Microcontrollers |
| Operating system | Embedded LINUX | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| interface | user interface | support 16-bit true color graphical menu interface and mouse operation |
| preview screen | 1/4 | |
| video | vdieo standards | PAL(625line,50f/s)；NTSC(525line,60f/s) |
| vdieo compression | H.264(High Profile) | |
| display quality | monitor:D1 | |
| play quality | D1/Half-D1/CIF/QCIF | |
| encode capacity | 4ch D1 real-time(default CIF) | |
| decode capacity | 2ch D1 real-time | |
| motion detect | Zones: 392(22*18)detection zones per window,multi-level sensitivity | |
| audio | audio compression | G.711A |
| bidrectional talk | supported | |
Record | record mode | manual>alarm>motion detection>timing |
| local playback | Any channel playback simultaneously(1-4ch) | |
| search mode | Time/calendar/event/channel search | |
Storage | space occupation | video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel； audio:691.2M/ day*channel |
| record storage | SD | |
| backup mode | Network backup,USB,USB Burn | |
| interface | video input | 4ch |
| video output | 1ch RCA (1.0Vp-p,75Ω),1ch cable | |
| audio input | 4ch | |
| audio output | 1ch(200-3000mV,5K) | |
| alarm input | no | |
| alarm output | no | |
| net interface | no | |
| PTZ control | One RS485,one RS232 | |
| usb | One USB | |
Mobile interface | GPIO | Support OSD overlay, storage(optional) etc |
| GPS | Not Support | |
| ? | others | support delay boot up/shut down,timing boot up/shut down |
| complement | player | mobile exclusive player,Support google map,showing vehicle running track and data. |
| SDK | Free SDK for second development | |
| others | Power supply | Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge |
| External power supply | Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output | |
| Power consumption | <10W | |
| Working temperature | 0℃-＋55℃ | |
| Working humudity | 10%－90% | |
| Atmospheric pressure | 86kpa－106kpa | |
| Dimension | 130(L)*147(W)*36(H)mm | |
| weight | 420g |
?
1. GPS ? ?2. RS232&RS485 ? ? 3. Video & audio input/output,power output ? ? 4. Power input
?
1. Power Indicator ? 2. Run Indicator ? 3. Alarm Indicator ? 4. Video Loss Indicator ? 5. Record Indicator
6. SD Indicator ? ?7. NC ? ?8. IR receiver ? ?9. SD card ? ?10. USB ? ?11. video output ? ?12. SD lock
