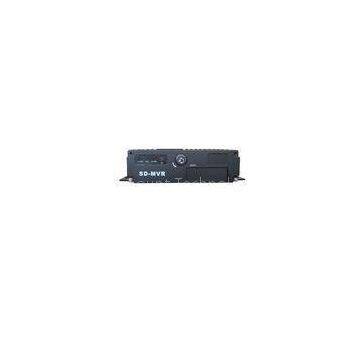

RJ45 GPS Alarm EDGE DVR 4 Channel Digital Video Recorder Support PTZ For Business Car

Brand Name	Fortunemount		Place of Origin	China
Model Number	MDVR-C11043G

Delivery Time:2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Certification:CE,ROHS, FCC

RJ45 GPS Alarm EDGE DVR 4 Channel Digital Video Recorder Support PTZ For Business Car?

Features:

?Special Function: Mobile Data, GPS Data, Wide Voltage, WIFI/3G, mobile DVR player, central manage client software, SDK etc... ?Compression Algorithm ideal: H.264 Main Profile ?Playback quality: 4ch Full D1 playback synchronous;8ch D1 non-realtime or under 2ch D1 +6ch CIF realtime record,Multiple channels realtime playback synchronous ?Main and Sub Stream: Dual Stream, Main stream is for local record , sub stream is for network transmission. ?Mobile monitor: Support iPhone, Windows Mobile, BlackBerry, Symbian,Android mobile monitor ?Display: Support TV, VGA, HDMI(optional) output at the same time. ?Operation interface: Similar with WINDOWS, easy and convenient to operate it. ?Network: Powerful Network service(Support DAS, DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP search, ALARM CENTER etc...), WEB, mobile CMS, SDK... ?Browsers: Support IE, Chrome,Firefox and Safari. ?Remote Access: Built-in DDNS(ARSP),dyndns,oray, myq-see, no-ip etc.... ?Differentiation: boot screen free replacement,twenty multinational language,more than ten kinds of GUI interface,ten kinds of remote control,dozens of key-press panel for combination selection,easy to achieve product differentiation. ?Others: With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.

? 4 channel Video Input

? support 2*SD Cardtorage;(2*SD maximum 128G)

? support GPS, not support Wifi/3G
?
?
?
?
?
Specification:

	Model	MDVR-C11043G
System	CPU	High performance embedded microprocessor HuaWei HI3515
Operation System	Embedded LINUX
System Resource	Multiple channels realtime recording,playback,network operation and USB backup
Screen	User Interface	GUI,on-screen menu tips
Screen Display	1/4 screen
Video	Standard	PAL(625 line,50f/s); NTSC(525 line,60f/s)
Compression	H.264(Main Profile)
Display Quality	TV: D1
Playback Quality	D1/HD1/CIF/QCIF
Encode Capacity	100/120fps D1 ?
Decode Capacity	50/60fps D1
Motion detect	Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Audio	Compression	G711A
Talk back	Support
Record & Playback	Record Mode	Manual>Alarm>Video Detection>Timing
Local Playback	1～4 channels
Record Search	Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Backup	HDD Occupation	Video: CIF 4~5G/day/channel, D1 16~20G/day/channel Audio: 691.2M/day/channel
Record Storage	Local HDD,Network, SD card
Backup Mode	Network/USB movable HDD/USB DVD-RW/SATA DVD-RW/SD card
Interface	Video Input	4ch
Video Output	1ch BNC
Audio Input	4ch
Audio Output	1ch RCA(200-3000mV,5K)
Alarm Input	4ch(multiplexing car signals)
Alarm Output	1ch
Network	RJ45 10M/100M
PTZ	1 RS485
USB	1 USB
SD card	2 SD card (Max 2 x 32G,for regular record,redundancy record, backup, snapshot etc...)
GPIO	Support speed,turn light,brake signals input;vehicle information OSD overlay,storage etc...
Mobile Interface and Function	GPS	Support
WIFI	Not support
3G	Not support
?	Others	Support timing and delay boot up/shut down
