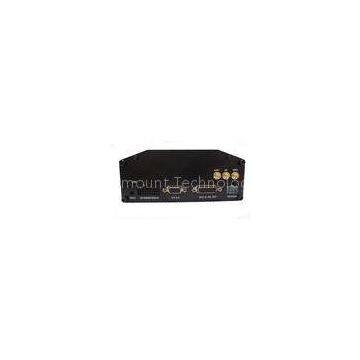

G Sensor Video GPS 3G Mobile DVR Recorder / HDD Black Box System 8 ch

Brand Name	Fortunemount		Place of Origin	China
Model Number	MCH8GWW

Delivery Time:2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Certification:CE,ROHS, FCC

G Sensor Video GPS 3G Mobile DVR Recorder / HDD Black Box System 8 ch

Feature:

?Special function: Mobile data,BDS,GPS data,G-Sensor ,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc. ?Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology. ?Playback quality: support 4ch D1,4ch 960H,8ch D1 real-time recording ?Main and Sub Stream: Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem. ?Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android) ?Display: support TV output,taking the lead in HD resolution technology. ?Operation interface: similar to Windows operating style, easy to get started with powerful mouse right-click function. ?Network: Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability. ?Browsers: Support multiple web browsers (ie,chrome,firefox, safari) ?Remote Access: With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided. ?Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others. ?Others: Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

? 4 channel Video Input

? support 1*HDD Storage;( HDD maximum 2T)

? Not support Wifi;

? Not support 3G;

? Support GPS;

? Not Support G-Sensor;

Specifications:

	Model	MCH8GWW
system	Main processor	Hi3520D
Operating system	Embedded LINUX operating system
System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
vdieo compression	H.264(Main Profile)
display quality	Monitor:D1
play quality	960H/D1/Half-D1/CIF/QCIF
encode capacity	4ch 960H real-time
decode capacity	1ch 960H real-time
motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
local playback	Any channel playback simultaneously(1-4ch)
search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel； audio:691.2M/ day*channel
record storage	HDD,network
backup mode	Network backup,USB HDD,USB writer,U disk
interface	video input	4ch
video output	1ch RCA (1.0Vp-p,75Ω),1ch for cable
audio input	4ch
audio output	1ch (200-3000mV,5K)
alarm input	4ch(multiplexing vehicle signal)
alarm output	2ch
RJ45 interface	no
RS485, RS232	One RS485,one RS232
USB	One USB
HDD	One SATA port,max.4T
Mobile interface &functions	GPIO si
