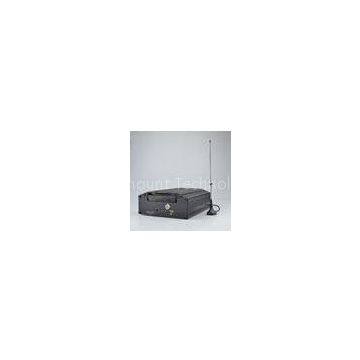

H.264 3G Medical Vehicle DVR Recorder SD SATA With 4channel Video Input

Brand Name	Fortunemount		Place of Origin	China
Model Number	MDVR-C22043

Delivery Time:2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Certification:CE,ROHS, FCC

?
?H.264 3G Mobile Medical Vehicle??DVR Recorder SD SATA With 4channel Video Input?

Feature:

?Special function: Mobile data,GPSdata,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc. ? ?Compression algorithm ideal: H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology. ? ?Playback quality: support 4ch D1 real-time record,multi-channel full real-time playback synchronously. ? ?Main and Sub Stream: Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem. ? ?Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android) ? ?Display: support TV output,taking the lead in HD resolution technology. ? ?Operation interface: similar to Windows operating style, easy to get started with powerful mouse right-click function. ? ?Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability. ? ?Browsers: Support multiple web browsers (ie,chrome,firefox, safari) ? ?Remote Access: With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided. ? ?Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others. ? ?Others: Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes；With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs. ? 4channel Video Input ? support 1*SD hard disk and 1*SATA Card Storage;(HDD Maximum 64G, 1*SATA maximum 2T) ? support 3G, not support Wifi or GPS

Specification:

	Model	MDVR-C22043
system	Main processor	Hi3515
Operating system	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
System resources	support 16-bit true color graphical menu interface and mouse operation
interface	user interface	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
vdieo compression	H.264(Main Profile)
display quality	monitor:D1
play quality	D1/Half-D1/CIF/QCIF
encode capacity	4ch D1 real-time
decode capacity	2ch D1 real-time
audio	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio compression	G.711A
Record & playback	bidrectional talk	supported
record mode	manual>alarm>motion detection>timing
local playback	Any channel playback simultaneously(1-4ch)
Storage & backup	search mode	Time/calendar/event/channel search
space occupation	video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel； audio:691.2M/ day*channel
record storage	2.5\'SATA,network
interface	backup mode	Network backup,USB,USB Burn
video input	4ch BNC
video output	1ch (1.0Vp-p,75Ω)
audio input	4ch
audio output	1ch(200-3000mV,5K)
alarm input	4ch(uncompatible with mobile signal)
alarm output	no(support 1ch expansion)
net interface	no
PTZ control	One RS485 port
usb	One USB port
hard disk	One SATA port,max.2T
