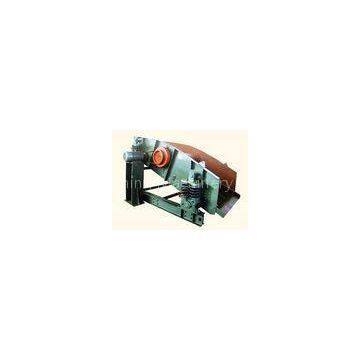

High Capacity Mining Vibrating Screening Machine With Eccentric Shaft / Blocks
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Glass Ceramic Ball Milling Machine Autogenous Cement Ball Mill Adjustable Speed
-
Automatic Elevating Apparatus High Weir Spiral Classifier Machine Energy Saving
-
Professional Mine Cyclone Assembly Hydrocyclone Separator Computer Selection
-
Normal Mineral separation agitated tanks For Agitating Pulp / Dewatering / Desliming
-
Large Capacity BF Flotation Cells for Separating Non - ferrous Metal , Flotation Machine
-
Convenient Adjustment Gravity Separator Machine Concentrating Table For Fine Minerals
Product Details
| Brand Name | Xinhai | Place of Origin | China | |
Product Description
High Capacity?Mining??Vibrating Screening Machine With Eccentric Shaft / Blocks
Quick Detail:
1. High abrasion resistance
2. Long service life,lower operating noise
3. The screen is made of Xinhai abrasion-resistant rubber, abration-resisting performance is more than five times as much as other screen
Description:
1. Xinhai abrasion-resistant rubber —the international abrasion-resistant rubber king can be provided and its service life is more than 10-20 times as much as steel screen and 4-6 times as much as polyurethane.
2. Xinhai high elastic abrasion-resistant rubber—the international abrasion-resistant rubber king has the features of high elasticity, long service life and low noise. Both hanged and pedestal vibrating screens are available.
Applications:
It is widely used for grading and screening materials in the following fields: minerals, coal, smelting, building materials, chemical industry and so on.
Principle:
It adjusts the amplitude by tube-shaped violent vibration screen with eccentric shaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.
Specifications :
| Model | Specification | Max feed particle size (mm) | Capacity (t/h) |
Motor model | Motor power (kw) | Weight (kg) |
Remark |
| SZZ0918 | 900×1800 | 40 | 20～25 | Y100L1-4 | 2.2 | 420 | Hanged vibrating screen |
| SZZ0918 | 553 | pedestal vibrating screen | |||||
| 2SZZ0918 | 570 | pedestal vibrating screen | |||||
| SZZ1225 | 1250×2500 | 100 | 100 | Y132S-4 | 5.5 | 1020 | Hanged vibrating screen |
| SZZ1225 | 1330 | pedestal vibrating screen | |||||
| 2SZZ1225 | 1320 | Hanged vibrating screen |
|||||
| 2SZZ1225 | 1335 | pedestal vibrating screen | |||||
| SZZ1530 | 1500×3000 | 200 | Y132M-4 | 7.5 | 1650 | Hanged vibrating screen |
|
| SZZ1530 | 1700 | pedestal vibrating screen | |||||
| 2SZZ1530 | 2870 | Hanged vibrating screen |
|||||
| 2SZZ1540 | 1500×4000 | 100 | 250 | Y160L-4 | 15 | 4240 | pedestal vibrating screen |
| SZZ1836 | 1800×3600 | 150 | 300 | Y180M-4 | 18.5 | 4500 | Hanged vibrating screen |
| 2SZZ1836 | 5616 | pedestal vibrating screen |
