High Efficiency Sieving Machine With Vibration / Linear Vibrating Screen
Negotiable
/ Set
1 Set(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Efficiency Vibrating Screening Machine Round Vibrating Screen ( YA )
-
Wearable Rubber Liner Submerged Spiral Classifier For Mining High Efficient
-
Industry Hydraulic Sand Separator Hydrocyclone Equipment for Ore Processing
-
High Productive Efficiency Agitation Tank For Chemical Reagent , Mixing Tank With Agitator
-
Powerful Energy Saving Steel Ores Agitation Tank With Powerful Stirring Capability
-
High Efficient Large Pulp Circulation Wemco Flotation Cells , Low Rotary Speed
Product Details
| Brand Name | Xinhai | Place of Origin | China | |
Product Description

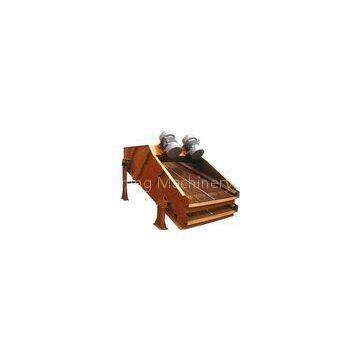

High Efficiency Sieving Machine With Vibration / Linear Vibrating Screen
Quick Detail:
1. Low energy consumption
2. High screen efficiency
3. Angle adjustable
4. The screen is made of Xinhai abrasion-resistant rubber, abration-resisting performance is more than five times as much as other screens
Description:
1. Lower motor power, only 1/4-1/5 of other screens
2. High screening efficiency
3. Angle adjustable
4. Low load for transfer and no need for special treatment
Applications:
The product is widely used in dewatering, desliming and dense medium mineral separation
Principle:
The product adopts double eccentric shaft, the two shafts have opposite directions but same speed, so that the centrifugal force produced by the two shafts is offsetted in the same line.
Specifications :
| Mode | Working area (m2) |
Amplitude (mm) |
Motor model | Motor power (kw) |
Rotating speed (r.p.m) |
| DZS0410 | 0.4×1.0 | 2～4 | YZS3-6 | 0.25 | 970 |
| DZS0412 | 0.4×1.2 | ||||
| DZS0415 | 0.4×1.5 | ||||
| DZS0612 | 0.6×1.2 | ||||
| DZS0718 | 0.7×1.8 | YZO-10-6 | 0.75 | 960 | |
| DZS0816 | 0.8×1.6 | ||||
| DZS0918 | 0.9×1.8 | ||||
| DZS1018 | 1.0×1.8 | YZO-16-6 | 1.1 | 950 | |
| DZS1020 | 1.0×2.0 | 3～5 | YZO-20-6 | 2 | |
| DZS1225 | 1.25×1.25 | ||||
| DZS1530 | 1.5×3.0 | ZDS41-6 | 3 | 940 | |
| DZS21530 | 1.5×3.0 | 950 | |||
| DZS1536 | 1.5×3.6 | 940 |
