Home > Products > Auto Darkening Welding Helmet > Professional MIG Auto Darkening Welding Helmet , Solar Powered Din 9-13

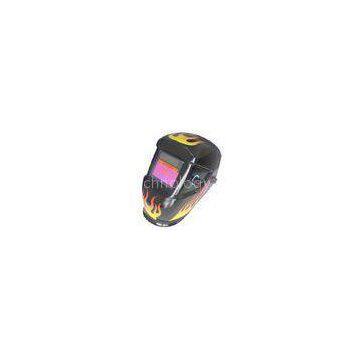

Professional MIG Auto Darkening Welding Helmet , Solar Powered Din 9-13
- T/T L/C D/P D/A
- 7 days
You May Like
-
Digital Arc Auto Darkening Welding Helmet Din 9-13 for Tig / Mig
-
Plastic Full Head Welding Helmet , Auto Shade Adjustable Mig Welding Helmets
-
TIG MIG Auto Darkening Welding Helmet , Blue Vision Welding Helmet
-
Vision Auto Darkening Welding Helmet , Digital and Full Face
-
Floor Type Electrode Drying Oven BOY-40 , Stabilizing Welding Rod Drying Oven
-
Bench Type Welding Electrode Drying Oven KM-200 With Constant Temperature
Product Details
| Brand Name | RETO | Place of Origin | China | |
| Model Number | EH-230 |
Product Description
Certification:ISO9001, CE, CCC
Professional MIG Auto Darkening Welding Helmet , solar powered din 9-13
Quick Details
1,Electro-optical technology of Germany
2,CE,ANSI Z87.1 certifications
3, High-definition visual effect
4, The response time of fast ,1/25000s
5, PA Material ,Good toughness and high flame retardatory
6, Simple operation, Comfortable and lightsome Description:
Description:
EH-2 series helmet, auto darkening welding helmets, welding mask
1. Model: EH-230/EF9040.
2. Fire resistance: Yes.
3. Material & Weight: PP, 0.48kgs.
4. Viewing area: 91*41mm.
5. ADF Frame Size: 110*90mm.
6. UV/IR protection: Up to shade DIN 16 at all time.
7. Light state: Shade DIN 4.
8. Variable shade: From DIN 9to DIN 13.
9. Power supply: Solar cells, two lithium batteries be changed.
10. Switching time:
A) Light to dark: 1/20, 000s.
B) Dark to light: 0.6~0.8s.
11. Sensitivity: Low or high.
12. Power on/off: Automatic
13. Darkness adjustment: External
14. EH-200 welding helmet Adapt to ADF: EF9040J, EF9040, EF9242, EF9848.
15. Application: MIG/TIG/argon arc/arc welding/Gas welding.
16. Color: Blue, green, silver, black, yellow, red, And beautiful pictures etc, spay-paint according to customer\'s choices.
17. Warranty: 2 year limited.
18. Provide OEM: Yes
19. To provide samples.
20. Dimension Of welding helmet: 360mm*240mm*220mm.
21. Packing methods:
1). 4 PCS of helmets packed together in one carton( normal). N/G weight: 2.568/5.455KGS Size of carton: 520*520*330mm, Color inside box.
2). 10 PCS of helmets packed in one carton( economical). N/G weight: 6.42/11.5KGS Size of carton: 742*534*290mm, Color inside box.
3). 20 PCS of helmets packed in one carton (economical). N/G weight: 12.2/21.8KGS Size of carton: 730*575*460 mm, Color inside box.
Applications:
Auto darkening welding mask are probably the most common, yet important type of protection equipment in the welding business, since without a special protection for the eyes, welding is nearly impossible. Auto-welding mask are the most advanced models of protective apparel, but let’s why. We should start by saying that it is essential to understand the way the arc flash works, in order to explain the efficiency of auto-welding mask. There are several types of light that radiate from the welding arc: ultraviolet (UV), high-intensity light and infrared (IR). Without protection against UV and IR eyes can suffer from permanent and severe damage: retinal burns and sight loss.
-Impact-resistant shell
-Wear well,protect face and head from hurt by spark
-Adapt for welding,cutting,gas cutting,etc.
-The protective lenses made with high technology can instantly become dark while receiving rays,so effectively protect users\' eyes,its darkness can be adjusted from No.9 to No. 13 as your demand.?
Specifications:
1. Be suitable to all kinds of welding mode.
2. When arc is struck, Auto-darkening Filter will turn from clear state to dark state, response time is less than 1/25000S.
3. With non-grade adjustable shade number from DIN9-DIN13.
4. The high performance of Auto-darkening Filter provides to the user’s eyes and face a full protection against UV and IR radiation during the entire?welding process, even in the clear state.
5. Delay time fast or slow can be selective
6. Sensitivity adjustment: you can adjust sensitivity (low or high) of the darkening filter according to your working conditions. At the MIG / MAG(co2) / TIG welding or?other small electric ARC welding can choose high sensitivity.
Competitive Advantage:
1, ISO9001, CE, CCC cert.
2, Reasonable pricing
3, OEM, ODM services
(1)Made?from?an?extremely?strong?PA66?material,the?shell?offers?a?full?head?and?face?protection, which?being?very?light weight.
(2)This?helmet?is?suitable?for?all?welding?applications?
(3)The?helmet?is?fitted?with?our?new?comfort?headgear,constructed?from?quality?Nylon?and?comfort?sweat?band
