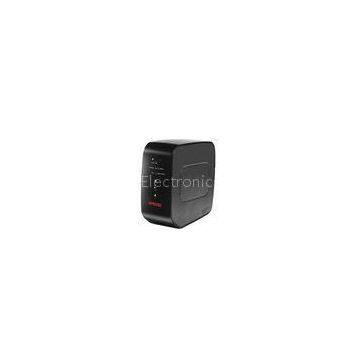

12VDC Acid Maint 3A DC UPS Power Supply Protection for short circuit with battery pack

Model NO.

DC Power IG3115E 30W

Input

Voltage

0-150vac /100-240Vac

FrequencyRange

47~65Hz (50/60Hz)

Output

Nominal Output Voltage –On A/C Mode

13.7VDC

Nominal Output Voltage –On Battery Mode

12VDC

Rated Current

3A

Output Transfer

<1ns

Maximum Power

30W

Battery

Type/Rating

12V/7AH Sealed Lead Acid Maintenance Free

BatteryLow-Alarm Level

11.0V 0.5V

Discharge Prevention

10.5V =/- 0.5V

Overcharge Protection

>14.5V 0.25V – Charge Stop

<13.6V 0.25V – Charge recover

Typical Battery Recharge Time

8 hours to 90%

Backup time

2.5hrs full load(Standard or option extended)

Protection

Input surge protection

Yes

Charger Protection

Yes

Cold Start Functionality

Yes

Low Battery Protection

Yes

Output Current Limit/Overload/Short circuit

Yes

Indication

AC input indication

Yes

Output indication

Yes

Low Battery indication

Yes

Replace Battery

Yes

Testing Battery

Yes

Alarm

On Battery and low battery(Optional)

Management

Auto Charge

Yes

Communication

On battery, Replace battery, battery missing, low battery

Enviroment

Operation temperature
