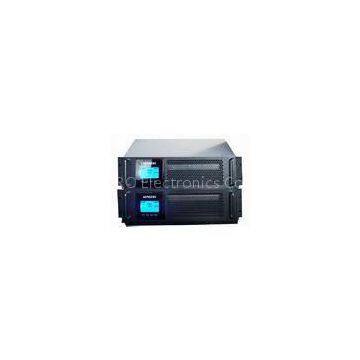

High Frequency Online UPS Rack Mount UPS HP9116CR HP9316CR Series 1-10KVA
- T/T L/C D/P D/A
- 7 days
You May Like
-
LCD 240VAC 24VDC UPS Power Inverter IG3110C 500VA / 300W, 1000VA / 600W for office
-
Home auto 12VDC UPS Power Inverter IG3110E Series 500VA, 600VA, 1000VA, 1500VA, 2000VA
-
High performance integrated Outdoor UPS HW9110E Series 1KVA / 800W, 2KVA / 1600W
-
High Frequency Online UPS Rack MOUNTABLE UPS HP9117C Series 1KVA,2KVA,3KVA
-
Intelligent Industrial Grade UPS IPS9312 Series With DC Panel
-
N + X 3 phase 4 wire 380V Modular UPS Series MPS9330 Series 5KVA - 120KVA
Product Details
| Brand Name | SOROTEC | Place of Origin | China | |
Product Description
Certification:CE,ROHS,ISO9000
Key Features
Large Blue LCD display interface in English，user-friendly Pure high frequency online UPS，with voltage adjustment circuit， provide stable power protection in bad operation environment Comprehensive electrical isolation protection and bypass protection Input power factor correction, reduce the harm of harmonic on grid，convenient to match small generators Automatic alarm, self test function Wide input voltage range Input neutral and live wire detection function and data protection function Main power failure，going to DC staring , Convenient and reliable; Main power recover，UPS start automatically
Applications
This series against the key equipment, such as special communication system and computer network system，and provide more flexible and reliable power protection for equipments require strict environment of power .
Trendy & Elegant LCD Design for real-time UPS system information
Technical Specifications of Rack mount UPS HP9116C HP9316CR Series
|
Model |
HP9116CR? 1-10KVA |
HP9316CR? 10KVA |
||||
|
1KR/1KR-XL |
2KR/2KR-XL |
3KR/3KR-XL |
6KR/6KR-XL |
10KR/10KR-XL |
10KR/10KR-XL |
|
|
Capacity |
1KVA/800W |
2KVA/1600W |
3KVA/2400W |
6KVA/4800W |
10KVA/8000W |
10KVA/8000W |
|
Nominal Voltage |
220/230/240VAC |
380VAC |
||||
|
Frequency |
50/60 Hz |
|||||
|
Input |
||||||
|
Voltage Range |
115～295VAC（±3VAC） |
176～297VAC（±3VAC） |
304～478VAC（±3VAC） |
|||
|
Frequency Range |
50HZ：（46～54HZ）；60HZ：（56HZ～64HZ） |
|||||
|
Power Factor |
＞0.98 |
|||||
|
Output |
||||||
|
Voltage precision |
220/230/240X (1±2%)VAC |
|||||
|
Frequency precision |
50/60HZ±0.05Hz |
|||||
|
Power Factor |
0.7/0.8（option） |
|||||
|
Harmonic Distortion |
Linear Load＜3%??? Non-Linear Load＜6% |
|||||
|
Overload capacity |
overload(110%～150%)after 30 seconds automatically transfer to bypass, it recover after? normal load |
|||||
|
Current Crest Ratio |
3∶1 |
|||||
|
Transfer time |
0ms（AC→DC） |
|||||
|
Battery |
||||||
|
DC voltage |
36VDC |
96VDC |
240VDC |
|||
|
Recharge time |
5 hours to 90% |
|||||
|
Charge Current |
1A |
4A |
1A |
