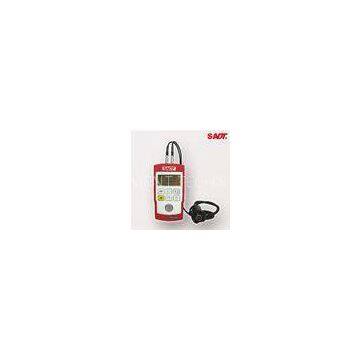

Portable Ultrasonic Thickness Gauge 0.8mm - 225mm Pulse Echo With Dual Probe

Portable Ultrasonic Thickness Gauge SA40EZ 0.8mm - 225mm Pulse Echo With Dual Probe

Miniaturized ultrasonic thickness gauge SA40EZ 4 digits LCD with backlight
?

?SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our?intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel,?aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can?be easily equipped with the low & high frequency probes as well as a high temperature probe.

Specifications:
Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.8 to 225.0mm
Resolution : 0.1mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Units: mm
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Size: 124x67x30mm
Weight: 240g


PT-5???? 5MHZ????? Dia.Φ10mm????? For standard applications
XT-5???? 5MHZ????? Dia.Φ7mm??? 　 For tubes with small diameter
GT-5??? 5MHZ????? Dia.Φ12mm?? 　For high temperature up to 400℃
CT-2.5? 2.5MHZ?? Dia.Φ12mm?? 　For unfavorable attenuation
