Portable Hardness Tester Hartip 1500 ASTM A956 Standard for Rockwell, Brinell Measuring

Portable Hardness Tester Hartip 1500 ASTM A956 Standard for Rockwell, Brinell Measuring

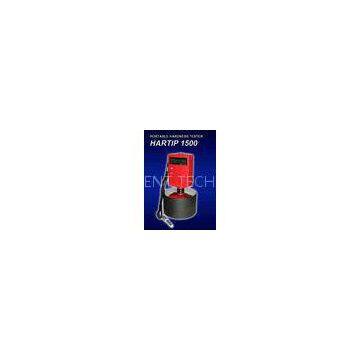

HARTIP 1500 is an integrated handheld metal hardness tester that combines impact device (probe) and

processor into one unit. The size is much shorter than normal impact device, which lets HARTIP 1500

can meet not only normal measurements, but can take measurements at narrowed space as well. HARTIP 1500 is suitable for testing hardness of almost all Ferrous and Non-Ferrous materials. It can be used for?industrial of power plant, petrochemical field, vehicle machine, air space, machine and so on.

Details:
KEY FEATURES
·Rugged and modular design
·Palm sized for narrow space
·High accuracy
·Built-in impact device
·For all metallicmaterials
·Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
·Test in any directions
·Automatic power on/off
·Recalibration allowed
·Comply to standard ASTM A956

Principle: Leeb hardness measurement
Accuracy: 3HL ?0.4% @HL=800
Display:? LCD with backlight
Hardness scale: HL/HRC/HRB/HB/HV/HS
Measruing range: HL200-960 / HRC19-68 / HRB13-101.7 / HB20-655 / HV80-940 / HS32-99.5
Impact device: D (Internal)
Materials: 9 common metal materials
Memory: 99 data
Statistics function: Average / Max. / Min. / value
Recalibration: Allowed by user
Indicator: Low battery
Power off: Auto
Lower supply: Ni-MH 9v rechargeable battery
Working environment: -10~+45°C
Dimension (mm): 100x60x33
Net weight (g): 150
