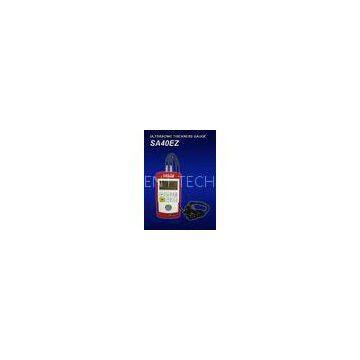

Miniaturized Ultrasonic Thickness Gauge 0.8mm - 225.0mm Pulse Echo with Dual Probe , SA40EZ

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SADT		Place of Origin	China
Model Number	SA40EZ

Product Description

Delivery Time:Within 3 days after receipt of advanced payment
Certification:ＣＥ?。桑樱希梗埃埃?br />

SA40EZ Miniaturized Ultrasonic Thickness Gauge? 0.8mm - 225.0mm Pulse Echo with Dual Probe

?SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our?intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel,?aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can?be easily equipped with the low & high frequency probes as well as a high temperature probe.

Specifications:
Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.8 to 225.0mm
Resolution : 0.1mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Units: mm
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Size: 124x67x30mm
Weight: 240g

PT-5???? 5MHZ????? Dia.Φ10mm????? For standard applications
XT-5???? 5MHZ????? Dia.Φ7mm??? 　 For tubes with small diameter
GT-5??? 5MHZ????? Dia.Φ12mm?? 　For high temperature up to 400℃
CT-2.5? 2.5MHZ?? Dia.Φ12mm?? 　For unfavorable attenuation
