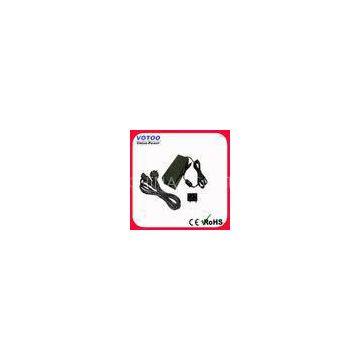

5.5mmX2.1mm 12V 4A Switching Power Adapter 100-240 AC For CCTV / Notebook
- T/T L/C D/P D/A
- 7 days
You May Like
-
UK 12V 6A Universal Regulated Switching Power Adapter For Laptop
-
UK Plug DC 12V 1A Surveillance Camera Power Supply 100-240VAC 5.5 x 2.1mm
-
7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters
-
Switching Desktop Power 12V 8A Adapter For LED Strip , Micro USB Adapter
-
12V 60W CCTV DVR Power Adapter With 1.2m DC Cord , 5 Amp AC To 12v DC Power Adapter
-
High Efficiency 96Watt Switching 4 Pin Power Adapter 12V 8A For LCD
Product Details
Brand Name | VOTOO | Place of Origin | China | |
Model Number | VP-1204000 |
Product Description
Certification:CE,ROHS
5.5mmX2.1mm 12V 4A Switching Power Adapter 100-240 AC For CCTV / Notebook
Quick Detail:
Type: desktop type Material: ABS AC plug: EU,US,AUS,UK,CN etc. No load power consumption< 0.3W Dc plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc. 100% aging test before shipment Certificate: CE & RoHS OEM/ODM welcome
Description:
?
Features:
o Universal Input 100~240VAC 50/60Hz
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Output Voltage: 12V
o Output Current: 4A
o Power: 48Watt
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:86%Min
Protections
1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection
4Short-circuit protection: automatic recovery -
5Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) -
5Insulation resistance: DC 500V 100MΩ (minimum) -
Weight: 370g
Dimensions: 119.0 x52.0 x 32.0mm
1. AC input power suitable for the world2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave
Specification:
?
OUTPUT |
DC VOLTAGE |
12V |
OUTPUT POWER |
48W |
|
CURRENT RANGE |
4A |
|
INPUT |
VOLTAGE RANGE |
110VAC -264V AC |
FREQUENCY RANGE |
50-60Hz |
|
EFFICIENCY(Typ.) |
86% |
|
ENVIRONMENT |
WORKING TEMP. |
-0°C ~ +40°C (Refer to output load derating curve) |
STORAGE TEMP.,HUMIDITY |
-10°C ~ +70°C 10~95% RH |
|
COOLING METHOD |
BY FREE AIR CONVECTION |
How to Install?
Before connecting check whether the power supply fullfields electrical specification (output voltage and current). Also check the socket type and its polarity. Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Do not install power supply in locations with high humidity, dust or strong direct sunlight. The power supply should be installed in a location with good airflow. Power supply can only be installed indoors. AC wire should connect tight with adapter socket, in case poor contact socket.
?
?
Applications:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. LED strip, LED lighting etc.
