Home > Products > Chimei LCD Panel > 7 Inch 800 480 3RGB HD Chimei LCD Panel AT070TN92 LED Backlight

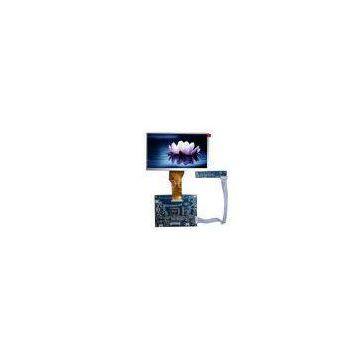

7 Inch 800 480 3RGB HD Chimei LCD Panel AT070TN92 LED Backlight
- T/T L/C D/P D/A
- 7 days
You May Like
-
5.7 Inch TFT 640 480 Sharp LCD Panels LQ057V3DG01 For Industrial PC
-
LTN104S2-L01 SAMSUNG 10.4 inch TFT lcd panel for Laptop , Pad
-
Ultra Bright COB Graphic STN Monochrome LCD Module For Security System
-
High Definition Monochrome Qvga LCD Module For Medical Equipment
-
Blue Smart Monochrome LCD Module , Custom Dot Matrix LCD Module
-
FSTN Alphanumeric 192 64D COB Graphic Monochrome LCD Module 8 Bit
Product Details
| Brand Name | CMI | Place of Origin | China | |
| Model Number | AT070TN92 |
Product Description
Certification:CE,ROHS, FCC
7inch?CMI Innolux TFT LCD panel AT070TN92 for?Car Monitor , Visual Intercom
Quick Detail
1. Part No:AT070TN92
2. Size:7 inch.
3. Resolution:800X3(RGB)X480
4. Luminance:250nit
5. Backlight: LED
6. Power?supply:3.3v(Typ.)
Specifications
|
Module?number |
AT070TN92 |
|
Resolution |
800X3(RGB)X480 |
|
Dot?pitch |
0.0642(W)?×?0.1790(H)?mm |
|
Active?Area |
154.08(W)?×?85.92(H)?mm |
|
View?angle |
R/L/U/D?70/70/50/70(Deg) |
|
Pixel?Arrangement |
RGB-stripe |
|
Surface?Treatment |
AG |
|
Electrical?Interface |
Digital |
|
Brightness |
250(cd/m2) |
|
Contrast?ratio |
500:1 |
|
Outline?dimension |
164.9(W)?×100.0(H)?×5.7(D)?mm |
|
Backlight |
LED |
|
Response?time |
25(ms) |
|
Display?mode |
TN,?Normally?White,?Transmissive |
|
Operate?temperature |
-20-70(°C) |
|
Storage?temperature |
-30-80(°C) |
|
Display?Colors |
262k/16.7M |
|
Power?Supply?Voltage |
3.3v(Typ.) |
|
Backlight?lifetime |
20k?hrs(Min.) |
Main Models of CMI as follows:
| G070Y3-T01 | G121X1-L04 | AT043TN25 V.2 | AT065TN14 |
| G070Y2-T02 | G121I1-L01 | AT043TN24 V.7 | AT070TN94 |
| G070Y2-L01 | G150X1-L03 | EJ050NA-01G | AT080TN64 |
| G080Y1-T01 | G150XGE-L04 | AT056TN52 V.3 | EJ080NA-05B |
| G104X1-L03 | G185BGE-L01 V1.0 | AT056TN53 V.1 | ZJ090NA-03B |
| G104X1-L04 | G133IGE-L03 | AT070TN83 V.1 | EJ101IA-01F |
| G104S1-L01 | G154I1-LE1 | G057VGE-T01 | AT102TN03 V.9 |
| G104V1-T03 | AT102TN03 V8? | G057AGE-T01 | AT102TN03 V.8 |
| G121X1-L03 | LQ035NC111 | AT070TN92 | LSA40AT9001 |
| G121S1-L02 | ? | ? | ? |
FAQ
1. Q: What Brand do you have?
? A: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG
2 .Q: What is your delivery method?
??? A: DHL , UPS , FedEx ,TNT
3. Q: what’s your products condition?
? ??A: Brand New,A grade,Original Package.
4 .Q: What is your guarantee time?
??? A: 1 year for A grade??
5. Q: What is delivery time?
??? A: 2-7 days after payment is received.
6. Q: What payment term do you accept?
??? A: We accept payment terms: T/T, Paypal,Western Union
7. Q: what’s the certification your products get?
??? A: Rohs Compliant
8. Q: How long can you supply the industrial grade products?
???? A: at least 3-5 years
9. Q: what’s your MOQ of your products?
???? A: NO MOQ
