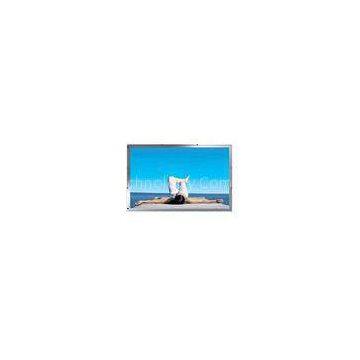

CMI Innolux 10.4" CMOS TTL TFT LCD panel G104V1-T03 for Vehicle-mounted Equipment
- T/T L/C D/P D/A
- 7 days
You May Like
-
10.4\" CMI Innolux TFT LCD panel G104X1-L03 for Medical Equipments
-
CMI Innolux 12.1\" 1500:1 TFT LCD panel G121S1-L02 600nit for Medical Equipments
-
12.1\" LVDS CMI Innolux TFT LCD panel G121X1-L03 Industrial Grade for Laptop,Notebook
-
TM043NDH02 4.3 inch Tianma TFT LCD Display Module WLED Backlight
-
Mini TV / GPS Tianma 4.3 Inch TFT LCD Touch Screen Monitor TM043NDH02
-
12.1\" AUO LCD Panel G121XN01 V0 for Medical Equipment , ATM , POS
Product Details
| Brand Name | CMI | Place of Origin | China | |
| Model Number | G104V1-T03 |
Product Description
Certification:CE,ROHS, FCC
CMI Innolux 10.4\"?CMOS TTL?TFT LCD panel??G104V1-T03?for Vehicle-mounted Equipment
Quick Detail
1. Part No:G104V1-T03
2. Size:10.4inch.
3. Resolution:640 RGB?x?480
4. Luminance:500nit
5. Backlight: LED
6. Power?supply:3.3v(Typ.)
Specifications
|
Module?number |
G104V1-T03 |
|
Resolution |
640?x?R.G.B.?x?480 |
|
Pixel?Pitch |
0.33(H)?x?0.33(V)(mm) |
|
Active?Area |
211.2(H)?x?158.4(V)(mm) |
|
View?angle |
R/L/U/D?89/89/89/89??(Deg) |
|
Pixel?Arrangement |
R.G.B.?Vertical?Stripe |
|
Surface?Treatment |
Hard?coating?(3H),?Anti-glare?(Haze?25%) |
|
Electrical?Interface |
TTL |
|
Brightness |
500?(cd/m2) |
|
Contrast?ratio |
1500:1 |
|
Outline?dimension |
225.5(H)x?176.3(V)?x?7.8(D)(mm) |
|
Gross?weight |
430g(Typ.) |
|
Backlight |
LED |
|
Response?time |
23(ms) |
|
Display?mode |
Super?MVA,?Normally?black |
|
Operate?temperature |
-30-80??(°C) |
|
Storage?temperature |
-30-80??(°C) |
|
Display?Colors |
262k |
|
Power?Supply?Voltage |
3.3v |
|
Module?Power?Consumption |
8.94W(Typ.) |
|
Backlight?lifetime |
50k?hrs(Min.) |
Main Models of CMI as follows:
| G070Y3-T01 | G121X1-L04 | AT043TN25 V.2 | AT065TN14 |
| G070Y2-T02 | G121I1-L01 | AT043TN24 V.7 | AT070TN94 |
| G070Y2-L01 | G150X1-L03 | EJ050NA-01G | AT080TN64 |
| G080Y1-T01 | G150XGE-L04 | AT056TN52 V.3 | EJ080NA-05B |
| G104X1-L03 | G185BGE-L01 V1.0 | AT056TN53 V.1 | ZJ090NA-03B |
| G104X1-L04 | G133IGE-L03 | AT070TN83 V.1 | EJ101IA-01F |
| G104S1-L01 | G154I1-LE1 | G057VGE-T01 | AT102TN03 V.9 |
| G104V1-T03 | AT102TN03 V8? | G057AGE-T01 | AT102TN03 V.8 |
| G121X1-L03 | LQ035NC111 | AT070TN92 | LSA40AT9001 |
| G121S1-L02 | ? | ? | ? |
FAQ
1. Q: What Brand do you have?
? A: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG
2 .Q: What is your delivery method?
??? A: DHL , UPS , FedEx ,TNT
3. Q: what’s your products condition?
? ??A: Brand New,A grade,Original Package.
4 .Q: What is your guarantee time?
??? A: 1 year for A grade??
5. Q: What is delivery time?
??? A: 2-7 days after payment is received.
6. Q: What payment term do you accept?
??? A: We accept payment terms: T/T, Paypal,Western Union
7. Q: what’s the certification your products get?
??? A: Rohs Compliant
8. Q: How long can
