Home > Products > Fiber Optic Patch Cord > LC / APC to LC / APC Single Mode APC Fiber Optic Patch Cord & Pigtail

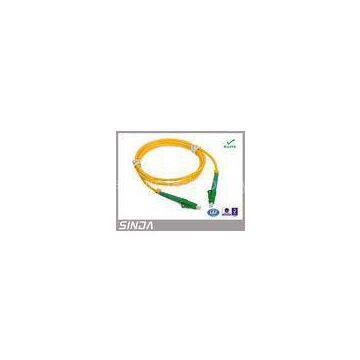

LC / APC to LC / APC Single Mode APC Fiber Optic Patch Cord & Pigtail

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ODM Or SINDA OEM		Place of Origin	China
Model Number	LC/APC Patch cord

Product Description

Delivery Time:3~5 days
Certification:ISO, ROHS

LC/APC to LC/APC Single Mode Fiber Optic Patch Cord & Pigtail

Quick Details :

Fiber Mode : SM

Connector : ?LC

Available?Length :?User-defined

Jacket?Colors : Yellow

Ferrule : APC

Insertion?Loss : ≤0.2dB

Specification?according?to?customer’s?requests

Both?OEM?and?ODM?are?availables

Description:

Low?insertion?loss?and?back?reflection?loss

Good?echangeability

Good?Durability

High?temperature?stability.

Standard:?Telcordia?GR-326-CORE?

Precise?connector

Excellent?mechanical?capability

Patch?cords?accord?with?bellcord?GR-326?,ISO9001,ROHS

Applications: ?

Optical?fiber?communications?system

Optical?fiber?access?networks

Optical?fiber?CATV

Optical?fiber?test?equipements

Optical?fiber?data?communication

LAN

Specification :

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G? (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Competitive advantages:

? Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.?

? All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

? We wish to create better future of optical communication industry jointly with both new and existing customers.
