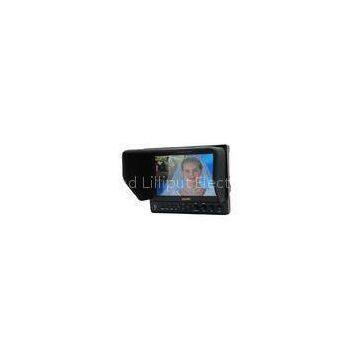

High Brightness 3G SDI Monitor With Vectorscope / Peaking Filter 7 inch Camera Monitor
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
IP64 Bluetooth GPS Industrial Panel Mount Computer , RJ45 Touch Screen Embedded PC
-
8 Inch Touchscreen Industrial Panel PC With Windows CE 6.0 R3 PC-865 For Navigation System
-
GSM / GPRS Industrial Touch Screen Panel PC For Home Automation With Samsung S3C2416 CPU
-
3G WiFi PC-745 RS232 Windows Industrial Touchscreen Panel PC With USB Multi language OSD
-
Information Display 3G Wi - Fi Touch Industrial Panel PC with Embedded platform
-
Industrial Multi Touch Panel PC FOR Advertising Terminal / Service Kiosk
Product Details
| Brand Name | LILLIPUT | Place of Origin | China | |
| Model Number | 663/S2 |
Product Description
High Brightness 3G SDI Monitor With Vectorscope / Peaking Filter 7 inch Camera Monitor
?
?
IPS Panel Wide Viewing Angles 7\" 3G SDI Monitor With Vectorscope / Peaking Filter?
2014 NEW Lilliput 663/S2 7\" 3G SDI Monitor With Vectorscope, Waveform, Audio level meter, Histogram, Peaking Filter,
?
Small unit, Big wisdom
Lilliput creatively integrated waveform, vector scope & video analyser into on-camera monitor, which provides Luminance/Color/RGB histogram,Y/Luminance, Cb, Cr, R, G & B Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting. making and playing movies/Videos.
?
Advanced Functions:
Vectorscope, Waveform, Audio level meter, Peaking Filter, False Colors, Histogram, Exposure, Camera Mode, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.
| Display | Panel Size | 7\" LED backlit |
| Resolution | 1280×800 | |
| Aspect Ration | 16:9 | |
| Brightness | 400cd/m2 | |
| Contrast | 800:1 | |
| Viewing Angle | 178°/ 178°(H/V) | |
| Input | 3G-SDI | 1 |
| HDMI | 1 | |
| YPbPr | 3(BNC) | |
| Composite | 1 | |
| AUDIO L&R | 1 | |
| TALLY | 1 | |
| Output | 3G-SDI | 1 |
| ? | HDMI | 1 |
| Audio | Speaker | 1(built-in) |
| Ear Phoone Slot | 1(built-in) | |
| Power | Current | 900mA |
| Input Voltage | DC12V (XLR DC Connection) | |
| Battery Plate | V-mount / Anton Bauer mount / F-970 / QM91D / DU21 / LP-E6 | |
| Power Consumption | ≤11W | |
| Environment | Operating Temperature | -20°C-60°C |
| Storage Temperature | -30°C-70°C | |
| Dimension | Dimension(LWD) | 191.5×152×31mm/141mm (with cover) |
| Suitcase Dimension(LWD) | 309*247*97.5mm | |
| Weight | 760g / 938g (with cover) / 2160g (with suitcase) |
?
Accessories:
| 1 | Folding Sun Shade Cover | 1 piece |
| 2 | Shoe Mount (for camera only) | 1 piece |
| 3 | Battery plate (F-970/QM91D/DU21/LP-E6) | 2 pieces |
| 4 | HDMI A/C cable | 1 piece |
| 5 | 12V DC adapter | 1 piece |
| 6 | Power & TALLY cable | 1 piece |
| 7 | Suitcase | 1 piece |
| 8 | Manual | 1 copy |
| 9 | Adaptor Panel | 1 piece |
| 10 | V-mount Battery Plate(optional) | 1 piece |
| 11 | Anton Bauer Mount Battery Plate(optional) | 1 piece |
| 12 | Gimbal bracket | 1 piece |
