Home > Products > HD Field Monitor > Crushproof IPS HD Field Monitor With Vectorscope / Audio Level Meter Lilliput 663 / P2

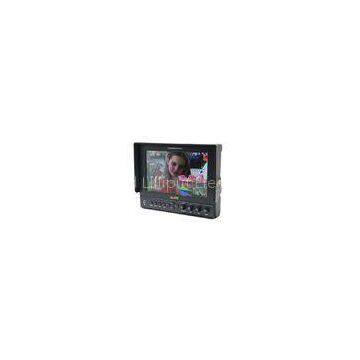

Crushproof IPS HD Field Monitor With Vectorscope / Audio Level Meter Lilliput 663 / P2
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Snow screen 5.8GHz FPV LCD Monitor Dual Wireless AV Receive , FPV Video Monitor
-
Portable HDMI FPV LCD Monitor 5.8GHz Wireless FPV Camera Lilliput 664 / W
-
5.8GH Wireless FPV LCD Monitor / 7 inch FPV Monitor Lilliput 665
-
Lilliput 667FPV - 5.8GH 7 inch FPV LCD Monitor Black Pearl With HDMI Input
-
Tilta Camera Rig BMCC Rig For Blackmagic Camera Rig For Hand Held Shooting
-
Lilliput 10.1\" LCD USB Touch Screen Monitor With 4 Wire Resistive Touch Panel / USB Input
Product Details
| Brand Name | LILLIPUT | Place of Origin | China | |
| Model Number | 663/P2 |
Product Description
Certification:CE / FCC
Crushproof IPS HD Field Monitor With Vectorscope / Audio Level Meter Lilliput 663 / P2
Lilliput 7\" IPS Panel 663/P2 HD Camera Monitor With Peaking Filter Functions
663/P (HDMI input Advanced Functions) IPS panel wide viewing angles, High resolution: 1280×800, High brightness: 400cd/m2, High contrast: 800:1, Faster response time, Wide voltage: DC 7-24V, TALLY interface with indicating light, Firm & portable design, POP-UP shortcut menu, Suitcase make monitor watertight, crushproof and dust proof.
Advanced Functions:
Vectorscope, Waveform, Audio level meter, Peaking Filter, False Colors, Histogram, Exposure, Camera Mode, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.
Parameters:
|
DISPLAY
|
Panel | 7\" IPS |
|---|---|---|
| Physical Resolution | 1280×800, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 400cd/m2 | |
| Contrast | 800:1 | |
| Viewing Angle | 178°/178°(H/V) | |
|
INPUT
|
HDMI | 1 |
| YPbPr | 3(BNC) | |
| VIDEO | 1 | |
| AUDIO | 2(L/R) | |
|
AUDIO
|
Speaker | 1(built-in) |
| Ear Phone Slot | 1 | |
|
POWER
|
Current | 900mA |
| Input Voltage | DC 7-24V(XLR) | |
| Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
| Power Consumption | ≤11W | |
|
ENVIRONMENT
|
Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C | |
|
DIMENSION
|
Dimension(LWD) | 191.5×152×31 / 141mm (with cover) |
| Weight | 760g / 938g (with cover)/ 2160g (with suitcase) |
Accessories:
| 1 | Folding Sun Shade Cover | 1 piece |
| 2 | Shoe Mount (for camera only) | 1 piece |
| 3 | Battery plate (F-970/QM91D/DU21/LP-E6) | 2 pieces |
| 4 | HDMI A/C cable | 1 piece |
| 5 | 12V DC adapter | 1 piece |
| 6 | Power & TALLY cable | 1 piece |
| 7 | Suitcase | 1 piece |
| 8 | Manual | 1 copy |
| 9 | Adaptor Panel | 1 piece |
| 10 | V-mount Battery Plate(optional) | 1 piece |
| 11 | Anton Bauer Mount Battery Plate(optional) | 1 piece |
| 12 | Gimbal bracket | 1 piece |
