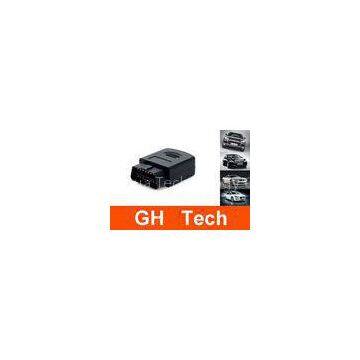

Low Power Consumption Obd2 Connector Gps Tracker for the Car Produced After Year 2000

Low power consumption obd2 connector gps tracker for the car produced after year 2000

1:GPPS Tracker OBD overview

G-T001 is a smart GPS Tracker OBD terminal with the features of below: rapid acceleration, abrupt deceleration, average speed, frequency of excessive speed, average speed of excessive speed, highest speed of excessive speed, frequency of drowsy driving, average duration of drowsy driving will be record by the terminal. Based on this data, it’s easy to analyze the driving behaviors.

The OBD2 is main application field such as insurance company, taxi rental company, 4s group repair shop, vehicle factory ,personal? vehicle own enterprise group, fleet management, government vehicle fleet management.

Support protocol of engine

J1850 PWM

J1850 VPW

ISO-9141-2

ISO-14230 KWP2000

ISO-15765 CAN

2:Main Application Field

Insurance?Company
Taxi Rental Company

4S Group repair shop

Vehicle?Factory

Personal vehicle owner

Enterprise?Group?Fleet?Management
Government Vehicle?fleet Management

If the speed is higher than the set value, the buzzer will sound alarm tone every three minutes and?if the coolant temperature is higher than the set value, the buzzer will sound alarm tone every three minutes.

3:Specification

Main features

3.1Buzzer alarm

Excessive speed:If the speed is higher than the set value, the buzzer will sound alarm tone every three minutes.

Coolant temperature: if the coolant temperature is higher than the set value, the buzzer will sound alarm tone every three minutes.

Drowsy driving: if the duration of driving is higher than the set value, the buzzer will sound alarm tone every three minutes.

Serious engine fault: If a serious engine fault occurred, the buzzer will sound alarm tone every three minutes.

Normal engine fault: if a normal engine fault occurred, the buzzer will sound a BEEP tone.

3.2 Enable vibration detection

When engine was off and the OBD indicator was in On permanently status, call the terminal through the registered Phone number, the terminal will hang up the phone call and the vibration detection function will be enabled.

The terminal will enter into the vibration detection status when the OBD indicator was on for two minutes.

Once a vibration was detected, an alarm SMS will send to the registered phone number.

3.3 Disable vibration detection

After enabled the vibration detection function, call the terminal through the registered phone number, the terminal will hang up the call and disable the vibration detection function.

When engine was turned on, the vibration detection function will be disabled.

3.4 Voice monitoring

Call the service center through the registered phone number, after authorization, the voice monitoring will be enabled.

Call the terminal through the registered phone number, the terminal will answer the phone call and enter into the voice monitoring status.

Hang up
