Product Details
| Brand Name | GH | Place of Origin | China | |
| Model Number | G-T005 |
Product Description
Certification:CE ROHS

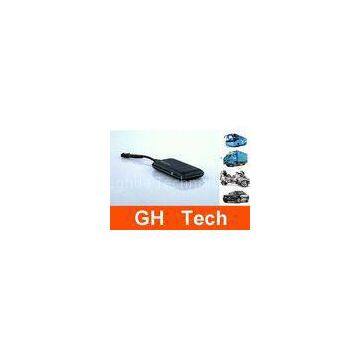

Smart Mini Quad Frequency Car GPS Tracker System With GSM SIM 9 - 70V Voltage car truck bus
motorcycle tracker
Brief introductions
This is a mini GPS tracker with quad frequency,9-70V DC,SOS which can be used on cars,trucks,motorcycles,taxis.bus and some other vehicles.
Specifications
|
Network |
GSM: 850/900/1800/1900MHz |
|
GPRS |
Class 12, TCP/IP |
|
Voltage |
9-70V DC |
|
Current |
≈22mA(12vDC) ≈12mA(24vDC) |
|
GPS fixed time |
Cold start 30sec(open sky) Warm start 29sec(open sky) Hot start 5sec (open sky) |
|
GPS fixed precision |
10m (2D RM) |
|
Temperature |
-20℃ ~ +70℃ |
|
Humidity |
5% ~ 95% RH |
|
Dimension |
90.0(L)x45.0(W) x13.5(H)mm |
|
Weight |
80g |
3. Installation comands
Prepare SIM Card:? Please use a GSM SIM card. Before insert the SIM card, please make sure to turn off the device. Please make sure the GPRS can be used, if not, please connect Service Provider. Please make sure the Caller ID can be used. Then insert the SIM card. InstallationPlease pay attention to the following matters:
Concealed installation for avoid the thieves damage. Avoid install together with the RF source, such as reversing radar, alarm and other vehicle communication equipment. Can use ribbon or wide sponge strength double-faced adhesive stick to fix. Equipment with GSM antenna and GPS antenna, installation shall ensure that face up (skyward), and above no metal barrier shield, suggest installation position:???? Front windshield decorative below the covert,
Front panel (skin for non-metal material) around the shadow
Rear window below decorative
3.3 Relay connection comands
Oil pump cut-off relay connection method:Coil ends connection were white line (85) and the yellow line (86), white line (85) joint car positive (+ 12 v), the yellow line (86) joint device relay control line.
The vehicles on the tubing string attached to oil pump, cut the wire of oil pump positive, the wire of oil pump positive joint the normally closed end of the relay (green line 87 a), the other end joint the relay’s other end (green line 30).
Note: this product with standard for 12V relay. Fit for installation on 12V car battery vehicles.
If the battery of the vehicle is 24Vs battery, need to be choose 24V relay.
3.4 Device connection diagram
LED scintillation state meaning interpretation
|
LED |
Scintillation state |
Meaning |
|
Red Power LED |
Shine 0.1 sec, dim 2 sec |
Working |
|
Shine 1 sec, dim 2 sec |
Low power |
|
|
Always dim |
Power off or fault |
|
|
Blue GPS LED |
Shine 0.1 sec, dim 2 sec |
GPS Fixed |
|
Shine 1 sec, dim 2 sec |
GPS not Fixed |
|
|
Always dim |
Power off or fault |
|
|
Yellow GSM LED |
Shine 0.1 sec, dim 2 sec |
GSM ready |
|
Shine 1 sec, dim 2 sec |
GSM not ready |
|
|
Always dim |
Power off or |
