New developing gprs internet thermal gprs printer easy operation can be used in hospital and restau

New developing? gprs internet? thermal gprs printer easy operation can be used in hospital and restaurant

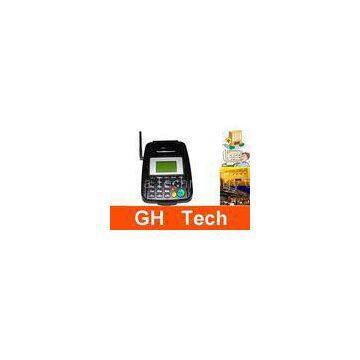

This GPRS Printer is?a highly platen?removal?mechanism, easy?loading?paper?and?maintenance? menu

?operation?interface,?easy?operation with 128*64 LCD display, 24 keys.

Highlights?????????

Comunication mode :GPRS/Ethernet

Print mode :thermmo sensitive

Pressing the key and then printing a queue number
?

Replaceable paper

Parameters:

Power souce :?? DC12V/3A

Storage temperature:-20~+80

Relative humidity :10%-95%

GSM frquency: GSM850/900/1800/1900MHz[optional]

Sensitivity: -102dBM

Transmitting power:<2w

Printing mode:thernisensitive

Width of printing paper :58mm

Valid printung paper: 48mm

Service life:50KM

Size 30*27*18cm

Weight :about 1.5kg

More details

Installation

?1.Insert valid? SIM card into SIM card seat

(Support GPRS function. For better GPRS data transmission, suggest prohibiting all voice and SMS functions in this SIM card)

2. Install GSM antenna

3. Connect power ?adapter

4. Switch on

GPRS/Ethernet Printer begins to initialize …

It will take almost 20 seconds? to register. When registered successfully, GPRS Printer will try to connect server automatically.

?For the first use, When GPRS Printer try to connect server, please press Con/Disc key to stop. Because of you should set some parameters.

Settings

In the menu, you can make some settings through keyboard on GPRS Printer. When GPRS Printer stand by, press Menu key, you can enter into sub-menu.

Menu

GPRS APN

GPRS IP

GPRS Port

GPRS User Name

GPRS Password

Printer ID

Print Speed

Order Message

Date

Time

IMEI Code

Product Model

Restaurant Name

Restaurant Add

Restaurant Tel

Clear Settings

Settings for GPRS connection:

(1) GPRS APN:

1. In the sub-menu, press Up or Down key to move the cursor to GPRS APN, then press Menu key.

2. Press numeral keys (0key to 9key) to entry the letters; Press * key to insert symbols

3. Setting finished, press Back key to save and exit

Now, take CMNET.CN for example. CMNET.CN is the APN for china mobile.

1. In the sub-menu, press Menu key once

2. Press #key to capital letters. (ABC On the LCD, meaning capital letters)

3. Press 2key 3 times, C is ok;

Then, press 6key 1time, M is ok;

Then, press 6key 2 times, N is ok

Then, press 3key 2 times, E is ok

Then, press 8key 1 time, T is ok

Then, press *, then menu key, get the symbol of.?

Then, press 2key 3 times, C is ok

Then, press 6key 2 times, N is ok

4. Press Back key to save the settings and exit

Note: if wrong input, press Del key to delete the last letter

(2) GPRS IP:

1. In the sub-menu, press Up or Down key to move the cursor to GPRS IP, then press

Menu key.

2. Press numeral keys (0key to 9key) to entry the numbers; Press * key to insert symbols

3. Setting finished, press Back key to save and exit

Now, server IP address is 192.168.1.100.

1. In the sub-menu, move the cursor to GPRS IP, then press Menu key

2. Press # key to number. (123 On the LCD, meaning number)

3. Press 1key 1 time, 1 is ok;

Then, press 9key 1 time, 9 is ok;

Then, press 2key 1 time, 2 is ok

Then, press *, then menu key, get the symbol of.?

Then, press 1key 1 time, 1 is ok

Then, press 6key 1 time, 6 is ok

Then, press 8key 1 time, 8 is ok

Then, press *, then menu key, get the symbol of.?

Then, press 1key 1 time, 1 is ok

Then, press *, then menu key, get the symbol of.?

Then, press 1key 1 time, 1 is ok

Then, press 0key 1 time1, 0 is ok

Then, press 0key 1 time, 0is ok
