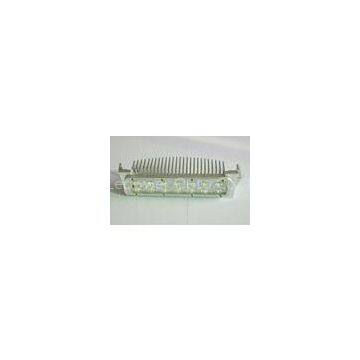

Bridgelux Chip 14W Street Light Module 70 CRI 2000 Lumen

Brand Name	Lepower		Place of Origin	China
Model Number	CHEM-W 14H

Delivery Time:5-10 days
Certification:CE, RoHS, EN62471

Bridgelux Chip 14W Street Light Module 70 CRI 2000 Lumen

Quick Detail:

Item Type: Street Lights LED Light Source: Bridgelux LED Input Voltage(V): 42-50V Lamp Power(W): 14W Lamp Luminous Flux(lm): 5000 Lamp Luminous Efficiency(lm/w): 130LM/W CRI (Ra>): 70 Color Temperature(CCT): White Working Temperature(℃): -20 - 60 Working Lifetime(Hour): 50000 Lamp Body Material: Copper ? IP Rating: IP68 Certification: CE,FCC,RoHS Place of Origin: Guangdong, China (Mainland) Brand Name: Lepower Model Number: CHEM-W 14H ? Warranty(Years): 2

Description:

14-20W different power customized Convection heat radiation design, deduce light decay and prelong life span, CHEM module, easy replacing.High luminous efficiency 14PCS Bridgelux LED inside,High efficiency. Adoption Lepower exclusive ZAG lens with high light transmittance up to 98%,No glare,No RF interference. Excellent heat dissipation design. Easy to assemble and costs less for replacing. Total Lumen 1500-2100LM,lumen efficiency is up to 110/W.. Convection heat dissipation system ensure LED long life span. Several led chips available, easy selection with your goal. Unique aluminium heatsink greatly reduce product weight and guarantee the safety usage, This new heatsink significantly increase the efficiency of? thermal conduction with less material usage and more saving on energy. It is the best solution of LED street light.

Applications:.

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, parking lots, building walls,factories and so on

Specifications:

Model	CHEM-C 14H
LED?Qty	1pcs
LED?Type	Bridgelux
LED?Power	14W
LED?Color	White
Input?Voltage	AC85~265V
Frequency?Range	50Hz?–?60Hz
Power?Factor	>98
Power?Efficiency	>85%
Luminous?Efficiency	110~130LM/W
Color?Temperature	WW	2800-3000K
PW	4000-4500K
CW	6000-7000K
CRI	WW	Ra>70
PW	Ra>75
CW	Ra>75
Lamp?Efficiency	>85%
Lumens?Output	WW	1500-2100lm
PW	1500-2100lm
CW	1500-2100lm
Beam?Angle	82*133
Working?Temperature	-20℃?～?+40℃
Storage?Temperature	-40℃?～?+100℃(25℃best)
Life?span	>50000hrs
Certification	CE,FCC,RoHS
Housing?Color	silvery white
