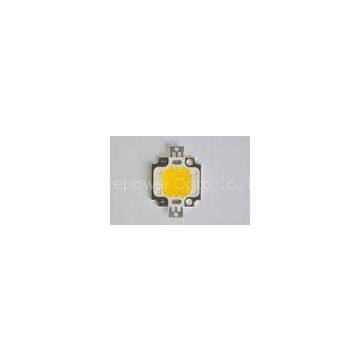

1200lm 12W High Power LED Module Warm White 120 For Outdoor Lighting
- T/T L/C D/P D/A
- 7 days
You May Like
-
15W 1500Lm High Power LED , 50V 320mA Brigelux COB LED Module
-
35mil Epistar LED Chip 15W COB LED Array For High Bay Light
-
Bridgelux 18W COB LED Module 2800K - 6500K For Down Light
-
100 - 110lm/W 24W High Power LED For Par Light , Bridgelux Chip
-
Energy Saving Bridgelux 30W COB LED Module 80 CRI With CE Approved
-
Genesis Chip 16W High Power LED 95 - 105 Lm/W For Tubular Light
Product Details
| Brand Name | Lepower | Place of Origin | China | |
| Model Number | LY-WH021201B4545 |
Product Description
Certification:CE, RoHS, EN62471
1200lm 12W high power led module with Epistar 35mil chip for outdoor lighting
Quick Detail:
12W power consumption Integrated package, high light efficiency Bridgelux led chip customized 38-41V, 320mA, up to 110lm/W,Ra>70 Size: D20mm*L20mm Warm white/Neutral white/Cool white optional Good thermal conductivity design, well heat dissipation to reduce the light decay and extend the lifetime of the light source. Suitable for wide range applications,the variety of working environment. High light efficiency but low power consumption. With compact structure and convient for welding operation. 2 years warranty1200lm 12W High Power LED Module Warm White For Outdoor Lighting
Description:
With compact structure and convenient for welding operation. Integrated package, 8-15W different power customized Super high lumens light source Several led chips available, easy selection with your goal. Thermal conductivity design, well heat dissipation to reduce the light decay and extend the lifetime of the light source.Applications:
Flood light Track light Down light High bay lightSpecification:
Dimension
Equivalent circuit diagram
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=320mA |
1150 |
-- |
1250 |
lm |
|
Color Rendering Index |
CRI |
IF=320mA |
? ? |
70 |
? ? |
Ra |
|
Color Temperature/ Color coordinates |
CCT |
IF=320mA |
2800 |
-- |
3000 |
K |
|
Forward Voltage |
VF |
IF=320mA |
38 |
-- |
41 |
V |
|
Luminous efficiency |
Φ |
IF=320mA |
95 |
-- |
105 |
Lm/W |
|
Thermal Resistance Junction To Board? |
RΘJ-B |
IF=320mA |
? ? |
2 |
? ? |
°C/W |
|
Reverse Current |
IR |
VR=17V |
? ? |
? ? |
2 |
μA |
|
Viewing Angle [1] |
2Θ1/2 |
IF=320mA |
? ? |
130 |
? ? |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
12 |
W |
