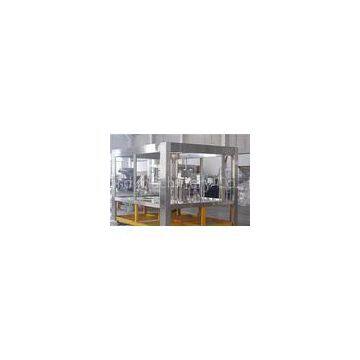

Industrial soda / juice Drinking Water Filling Machine 3 In 1 Washing Filling Capping Machine

Brand Name	Hyford		Place of Origin	China
Model Number	CGF18-18-6

Delivery Time:30 working days
Certification:CE,ISO,SGS,BV

50 Heads 3 In 1 Mineral Water bottle Filling Machine with Rotary Vacuum Level Control Filler

Quick Detail:

Filling Principle: Normal Pressure, Gravity Filling Number of Washing Heads: 18 Number of Filling Heads: 18 Number of Capping Heads: 6 Production Capacity: 6000B/h (500ml) Shipment: by Sea/Train? Type: Filling Machine Condition: New Application: Water (mineral water, pure water) Packaging Type: Bottles, Automatic Grade: Automatic Driven Type: Electric Voltage: 220/380V Power: 7.5KW Place of Origin: Jiangsu, China (Mainland) Brand Name: Hyford Model Number: CGF18-18-6 Weight: 3000kg Certification: CE, ISO, SGS, BV After-sales Service Provided: Engineers available to service machinery overseas Material: High quality SUS304 stainless steel

Description:

?(1) The mineral water plant / automatic mineral water machine includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

(2) The ?mineral water machine is mainly used in the mineral water/pure water filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine. The whole process is automatic.

(3) The mineral water machine is used in filling mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

(4) The mineral water 3-in-1 machine operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(5) The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(6) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

(7) The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is ideal-preferred equipment for beverage maker.

Specifications:

Automatic Mineral Water Washing-Filling-Capping 3-in-1 Machine --Main data?

model	CGF 12125	CGF 18186	CGF 24248	CGF 323210	CGF 404012	CGF 505012	CGF 606015	CGF 808020
Number of washing,filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity (500ml)(B/H)	2000 -4000	5000 -7000	8000 -12000	12000 -15000	16000 -20000	20000 -24000	25000 -30000	35000 -40000
Suitable bottle specification (mm)	φ=50-110=170 330-2250ml
Washing pressure (kg/cm2)	2-3
Main motor power(kw)	2.2	2.2	3	5.5	7.5	11	1
