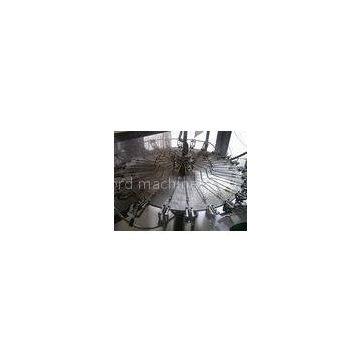

4-in-1 Balanced Pressure Juice Filling Machine , Beverage Filling Production Line for Bottle

Brand Name	Hyford		Place of Origin	China
Model Number	BRGF

Delivery Time:30 working days
Certification:CE,ISO,SGS,BV

4-in-1 Balanced Pressure Juice Filling Machine , Beverage Filling Production Line for Bottle

Quick Detail:

Type: Juice Pulp filling machine Condition: New Application: juice pulp Packaging Type: Bottles, Automatic Grade: Automatic Driven Type: Electric Voltage: 220/380V Power: 2-10KW Place of Origin: Jiangsu, China (Mainland) Brand Name: Hyford Model Number: BRGF Series Weight: 3000-12000kg Certification: CE, ISO, SGS, BV After-sales Service Provided: Engineers available to service machinery overseas Material: High quality SUS304 stainless steel Filling Principle: Balanced Pressure Filling Number of Filling Heads: 12,18,24,32,40 ?Shipment: by Sea/Train

Description:

Automatic Washing-Filling- Filling-Capping 4-in-1 Machine for juice pulp

The machine consists four parts: 1 rinser 2. pulp filler 3. juice filler 4. capper.

Filling accurately with pulp floating evently, and capacity from 2000B/H up to 15000B/H.

(1)?Material:?Stainless?steel?304?/316?

(2)?Capacity:?3000-21000B/H(can?be?improved)?

(3)?Bottles?type:?PET, PVC, PP,?Glass?bottles.??

(4)?Bottle?Hight: 150-340?mm??

Electrical?parts:

PLC?programming?controller??????Mitsubishi/Siemens

Transducer?????????????????????Mitsubishi/Siemens

Touch?screen?monitor????????????Mitsubishi/Siemens

Main?electrical?components???????SCHNEIDER?

Pneumatic?component???????????AIRTAC/FESTO?

Specifications:

Automatic Washing- Filling- Filling-Capping 4-in-1 Machine for Juice Pulp--Main data?

Model	Washing Heads	Filling Heads for juice pulp	Filling Heads	Capping Heads	Production Capacity (b/h)	Main Power (KW)
BRGF18-8-18-6	18	8	18	6	4000	4.5
BRGF24-18-24-8	24	18	24	10	6000	5.5
BRGF32-24-32-10	32	24	32	10	10000	7.5

Competitive Advantage:

(1) Full filling is to avoid bottles from sinking after the bottles cooling off, and to decrease dissolved oxygen to the utmost extent.

(2) Reasonable structured storage hopper and material supply system keep material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.

(3) The storage hopper has the characteristics of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

(4) Sanitary filling head system is of umbrella structure, high filling speed.

(5) Perfect filling temperature control system.

(6) Return tank system has the function of supplying the material automatically.

(7) Perfect CIP system
