Automatic Drinking Water Filling Machine for Pure Water , 500ml PET Bottle 12 Head 4000B/h
- T/T L/C D/P D/A
- 7 days
You May Like
-
Plastic bottle Washing Filling Capping Machine / Gravity Filling Equipment for Alcohol , Soy
-
Pure Drinking Water Bottle Filling Machine 3 In 1 By Electric Drive , PLC Control
-
Can / Glass Bottle Purified Drinking Water Filling Machine 12000 B/h Auto and High Speed
-
Full Automatic Beverage Filling Plant , Liquid Filling Production Line with PLC Control
-
Mineral Drinking Water Filling Machine for Non carbonated Drink 7.5Kw , 3 In 1 Unit
-
Fruit Juice / Wine / Pure Drinking Water Filling Machine for PET Bottle 200ml - 2000ml
Product Details
| Brand Name | Hyford | Place of Origin | China | |
| Model Number | CGF16-12-6 |
Product Description
Certification:CE,ISO,SGS,BV

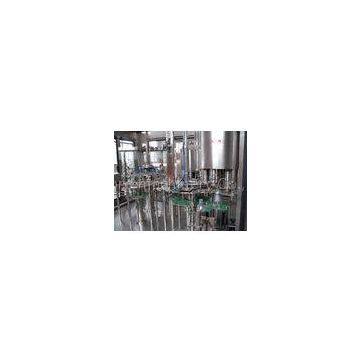

Automatic Water Bottle Filling Machine for Pure Water , 500ml PET Bottles 12 Head 4000B/h
Quick Detail:
Type: Filling Machine Condition: New Application: Water (mineral water, pure water) Packaging Type: Bottles, Automatic Grade: Automatic Driven Type: Electric Voltage: 220/380V Power: 2.2KW Place of Origin: Jiangsu, China (Mainland) Brand Name: Hyford Model Number: CGF16-12-6 Weight: 2000kg Certification: CE, ISO, SGS, BV After-sales Service Provided: Engineers available to service machinery overseas Material: High quality SUS304 stainless steel Filling Principle: Normal Pressure, Gravity Filling Number of Washing Heads: 16 Number of Filling Heads: 12 Number of Capping Heads: 6 Production Capacity: 4000B/h (500ml) Shipment: by Sea/TrainDescription:
This water filling machine contains washing, filling and capping with complete automation. It is suitable for filling all kinds of water?such as mineral water, pure water, still water and tab water into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing?bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.
Specifications:
Automatic washing filling and capping line--Main data?
|
model |
CGF 12125 |
CGF 18186 |
CGF 24248 |
CGF 323210 |
CGF 404012 |
CGF50 5012 |
CGF 606015 |
CGF 808020 |
|
Number of washing, |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-12 |
50-50-12 |
60-60-15 |
80-80-20 |
|
Production capacity (500ml) (B/H) |
2000 -4000 |
5000 -7000 |
8000 -12000 |
12000 -15000 |
16000 -20000 |
20000 -24000 |
25000 -30000 |
35000 -40000 |
|
Suitable bottle specification (mm) |
φ=50-110=170 330-2250ml |
|||||||
|
Washing pressure (kg/cm2) |
2-3 |
|||||||
|
Main motor power(kw) |
2.2 |
2.2 |
3 |
5.5 |
7.5 |
11 |
15 |
19 |
|
Overall dimensions (mm) |
2400 |
2600 |
3100 |
3800 |
4600 |
5450 |
6500 |
76800 |
|
Weight(kg) |
2500 |
3500 |
4500 |
6500 |
8500 |
9800 |
12800 |
15000 |
Competitive Advantage:
1. Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.
2. Clamp transferring technology varied bottle types.
3. With little abrasion. Stable Transferring. Easy to change bottles.
4. With ring type pressure bearing hydraulic cylinder.
5. With high filling speed and exact liquid level.
6. Excellent Stainless Steel. Electric
