Automatic Measuring System 31 - 650HBW Brinell Hardness Testing 0.1HBW Resolution
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
ASTM B647 Standard WB -20 Portable Vickers Hardness Tester for Aluminium, Copper Alloy
-
High Accuracy Portable Hardness Tester Hartip 3000 Menu Operation HRC / HB Hardness Scale
-
Portable Hardness Tester Blocks HB, HRB, HRC Hardness Scales for Brinell, Vickers
-
Standard ISO6508 M-1 Portable Hardness Tester 0.5HR Resolution Testing HRN, HRT, HRW
-
Steel Hartip 1000 Integrated Portable Hardness Tester Leeb Hardness Measurement
-
High Accuracy Hartip 1500 ASTM A956 Standard Hardness Tester Leeb Hardness Measurement
Product Details
| Brand Name | SADT | Place of Origin | China | |
| Model Number | HB SCALER |
Product Description
Certification:ＩＳＯ９００１
Automatic Measuring System 31 - 650HBW Brinell Hardness Testing 0.1HBW Resolution

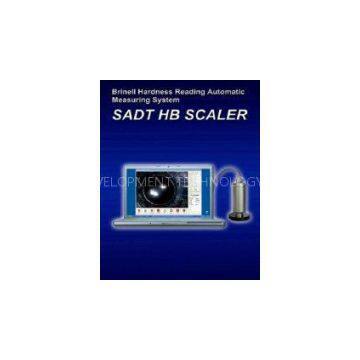

SADT HB SCALER is an optical measuring system which can automatically measure the size of
indentation from Brinell hardness tester and gives the Brienll hardness readings. All values and
indentation images can be saved in PC. With the software, all values can be processed and printout a
report.
KEY FEATURES
High accuracy: SPAN>0.01mm
Measuring automatically
Read out in HBW and mm
All HB readings and images can be saved as Excel or tif format
Print out test report
Quick respond: <0.001s
Measuring scale: HBW10/3000, HBW10/1000, HBW5/750, HBW5/250, HBW2.5/187.5
Measuring range: Indent: 0.6-6mm
Hardness: 31-650HBW
Resolution: 0.1HBW
Respond interval: <0.001m
Power Supply: From USB port
Weight: 350g (Measuring haed)
Dimension: 170 x ?0mm
