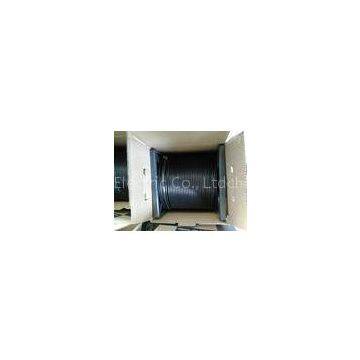

75ohm RG6 Coaxial Cable With Jelly, Drop Cable For CATV, Video Cable, Close Circuit Television cable

Brand Name	Libo		Place of Origin	China
Model Number	RG6 cable with UL jacket

Delivery Time:Within 10 days
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
75ohm RG6 Coaxial Cable With Jelly, Drop Cable For CATV, Video Cable, Close Circuit Television cable

Product description:
Inner conductor is oxygen free?solid copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is bonded laminated aluminum tape, the second shield is 65% aluminum wire braid; jelly or flooded compound is added before outer jacket extrusion. Outer jacket is UL standard PVC.
?
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403\"(1.02mm)±0.01(0.0004)
?
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18\"(4.57mm)
?
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.15 aluminum braid wire, 4ends x16 carry, pitch 25mm, 60% coverage.
3rd shield: normal aluminum foil.
?
Jelly or flooded compound is added before jacket extruding.
?
UL standard PVC Jacket:
Nominal diameter over jacket:0.278\"(7.06mm)±0.008\"(0.2mm)
?
Messenger version: 1.3mm zinc coated (galvanized) carbon steel wire.
?
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 82% nominal
Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100 meters(MAX.)
5	2.66
55	5.25
211	10.10
250	11.25
270	11.48
300	12.14
330	12.76
350	13.15
400	14.11
450	15.03
500	15.93
550	16.70
600	17.77
750	19.69
870	21.33
1000	22.97

?
Applications:
RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:

RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.RG6 cable is of low cost, and it is easy to install as well.Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.Libo cable has a stable workforce and engineering team, normal lead-time for 40’ FCL is around 10 days.Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM service as well as ODM service.
